2200mm 185KW After Fabric Dyeing Process Fabric Heat Setting Finishing Stenter Machine

Basic Information
Place of Origin: CHINA
Brand Name: SUNWIN
Certification: CE
Model Number: KTH-2400-8
Minimum Order Quantity: 1 SET
Price: USD5000-290000
Packaging Details: Pallet packing / Wooden box packing
Delivery Time: 60-90 Days
Payment Terms: L/C, T/T
Supply Ability: 10 SET/ MONTH
Detail Information
Condition: NEW Product Name: Stenter Finishing Machine
Automatic Grade: Fully Automatic Voltage: 380V/50HZ
Power: 185KW Warranty: 1 Year
Service: Overseas Service Available Color: Blue
High Light:

2200mm fabric heat setting machine

,

185KW fabric heat setting machine

,

fabric dyeing machine 100m/min


Product Description

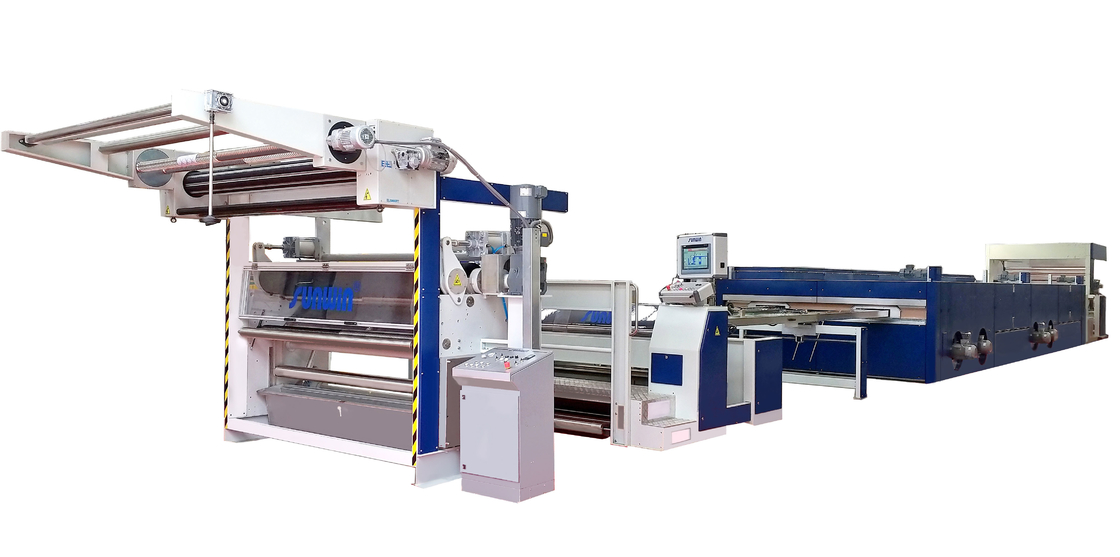

After dyeing process fabric heat setting stenter finishing machine



Main function:

The stenter machine major suitable for knit fabric, woven fabric, warp knitted fabrics heat setting, drying finishing.



Specification:



Model KTH-2400-8
Machine width 2400mm
Working width 2200mm
Speed 5-100m/min
Heating system Thermal Oil
Chambers 10 chambers
Chain Horizontal Chain
Rail Lubricant type rail



Application:

Suitable for woven, warp knit, cotton, T/C, Viscose fabrics heat setting finishing. Useful for increase the fabric dimension stability.



Machine Flow Process:

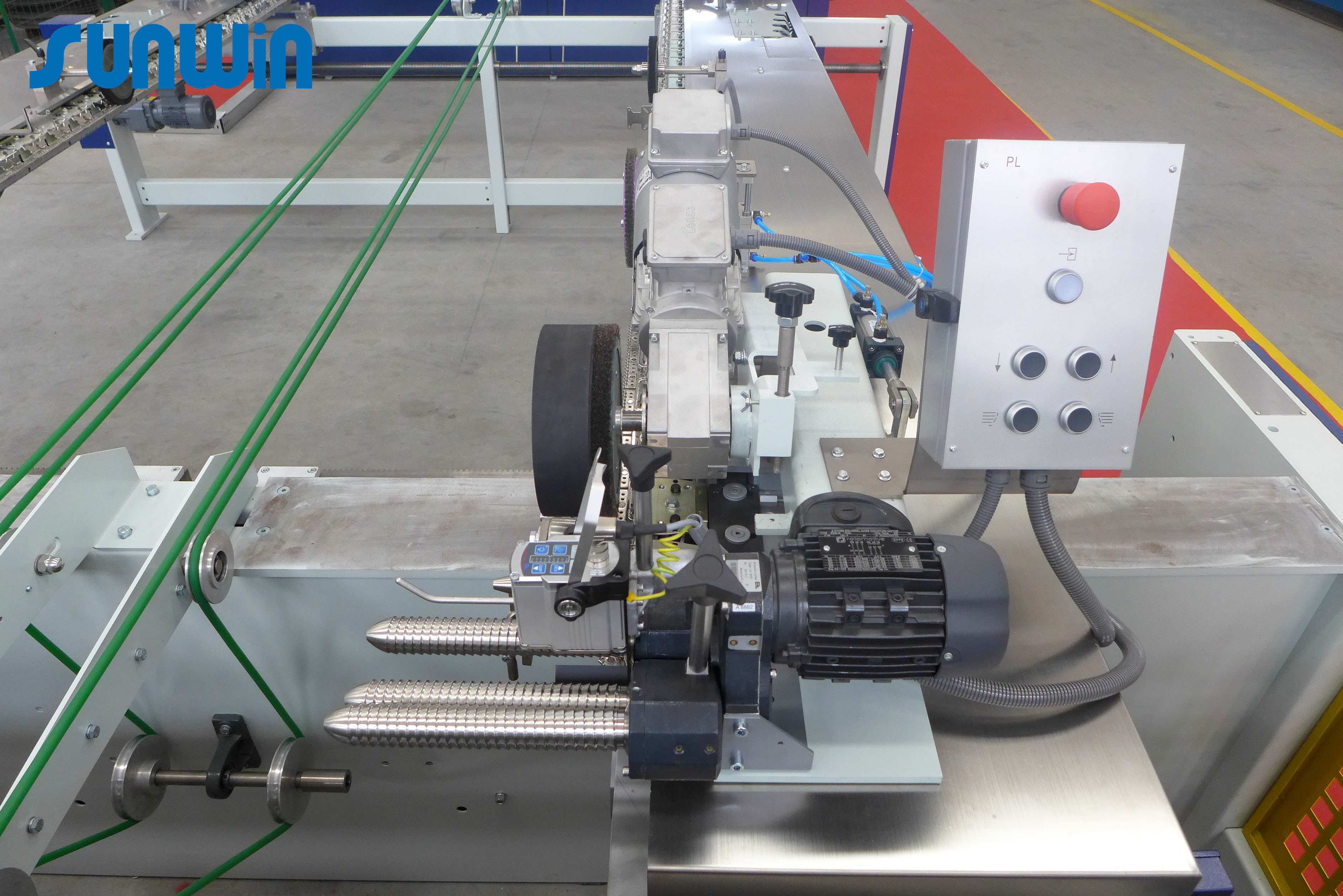

Vertical type entry → Centering device → Padder → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Chambers → Air cooling → Cylinder cooling → Plaiter



2200mm 185KW After Fabric Dyeing Process Fabric Heat Setting Finishing Stenter Machine 0



Warranty:

12 Months upon machine sucessfully running.



FAQ:

Q1. Where is your company ?

Ans.: Our company located in China, Jiangsu Province , Wuxi city .

Q2.: How about your machine warranty ?

Ans: Our machine warranty period is 12 months.

Q3.: How long it takes for our ordered machine ?

Ans.: Normally it takes 2-3 months for machine produce process.

Q4: Did you machine sold to overseas countries ? Or only focus on local market ?

Ans: We not only sell our machine in China domestic market, but also we export our machine to Southeast asia, South Asia, Central Asia, Middle East countries.
