Tubular Slitting Open Width Knitted Fabric Cloth Finishing Machine 2800mm

Basic Information
Place of Origin: CHINA
Brand Name: SUNWIN
Certification: CE
Model Number: STH-3000-8
Minimum Order Quantity: 1 SET
Price: USD5000-320000
Packaging Details: Pallet packing / Wooden box packing
Delivery Time: 60-90 Days
Payment Terms: L/C, T/T
Supply Ability: 10 SET/ MONTH
Detail Information
Color: White+ Grey Heating: Steam/ Oil/ Gas
Condition: NEW Automation Grade: Fully Automatic
Product Name: Stenter Finishing Machine Voltage: 380V/50HZ
Power: 185KW Warranty: 1 Year
High Light:

SUNWIN Open Width cloth finishing machine

,

Knitted Fabric cloth finishing machine

,

denim finishing machine 2800mm


Product Description

tubular slitting open width knitted fabric stenter finishing machine



Features:

- Ideal heat setting values

- Minimized energy input thus the production cost reduced

- Higher production speed for woven fabrics

- All the production data can be controlled via touch screen controller

- High automation system

- All the machines setting carried out as automaticlly



Specification:



Model STH-3000-8
Machine width 3000mm
Working width 2800mm
Speed 5-100m/min
Heating system Thermal Oil
Chambers 8 chambers
Chain Horizontal Chain
Rail Lubricant type rail
Selvedge gumming Option
Selvedge cutting Option
Automatic weft straightener OPtion



























Application:

Major suitable for open width knitted fabric, woven fabric, warp knitted fleece fabric etc



Machine Flow Process:

Vertical type entry → Centering device → Padder →Automatic weft straightener → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Gumming → Chambers → Air cooling →Cutting device → Cylinder cooling → Plaiter

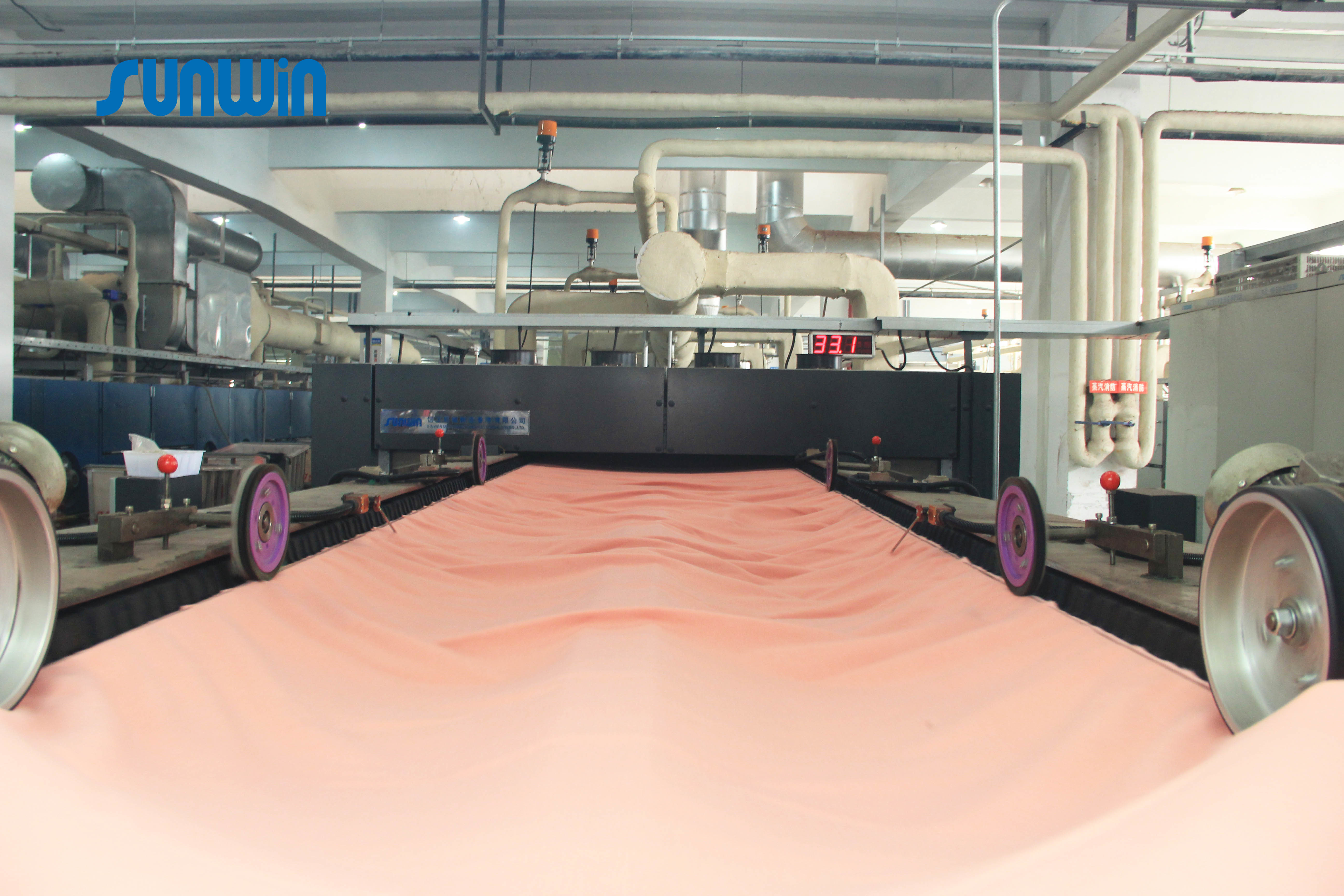

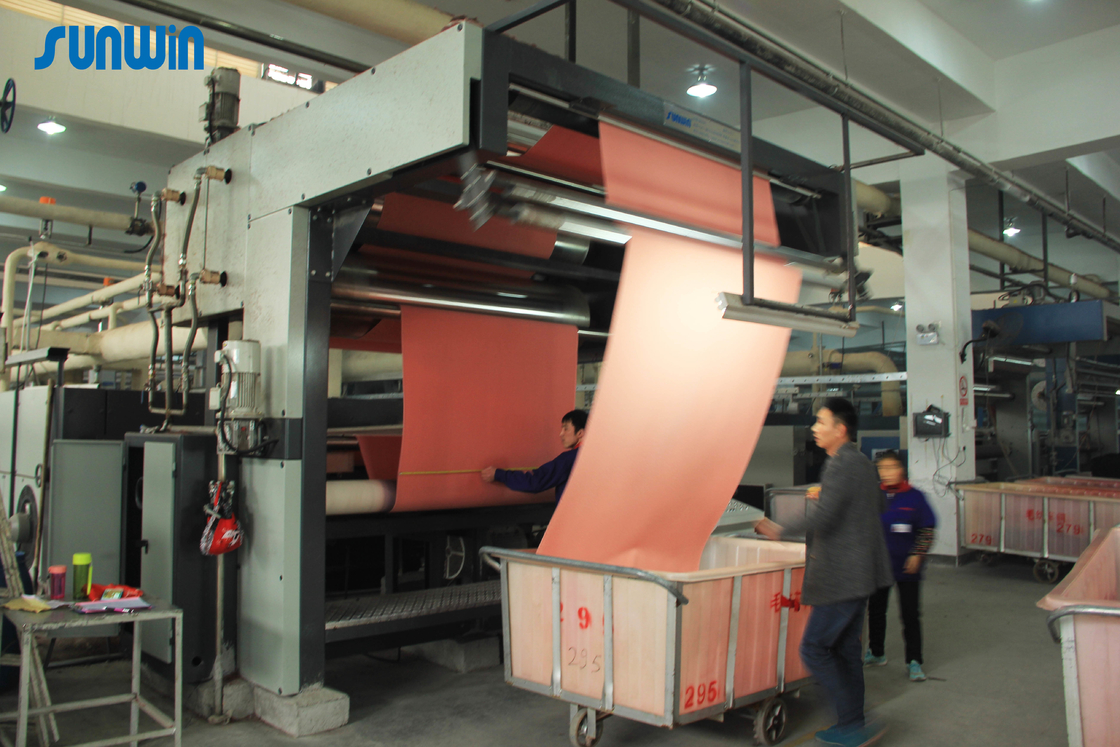

Tubular Slitting Open Width Knitted Fabric Cloth Finishing Machine 2800mm 0



Warranty:

1 YEAR WARRANTY PERIOD.



FAQ:

Q1. Where is your company ?

Ans.: Our company located in China, Jiangsu Province , Wuxi city .

Q2.: How about your machine warranty ?

Ans: Our machine warranty period is 12 months.

Q3.: How long it takes for our ordered machine ?

Ans.: Normally it takes 2-3 months for machine produce process.

Q4: Did you machine sold to overseas countries ? Or only focus on local market ?

Ans: We not only sell our machine in China domestic market, but also we export our machine to Southeast asia, South Asia, Central Asia, Middle East countries.
