Color: | Blue | Heating: | Steam/ Oil/ Gas |
---|---|---|---|
Condition: | NEW | Automation Grade: | Fully Automatic |
Product Name: | Stenter Finishing Machine | Voltage: | 380V/50HZ |
Power: | 185KW | Warranty: | 1 Year |
High Light: | 2000mm fabric finishing machine,5-100m/min fabric finishing machine,Fleece fabric raising machine |
after raising machine fabric fleece stenter finishing machine
Features:
- Special configuration so that to acquire the maximum evaporation capacity
- Thermal oil, steam or natural gas heating system

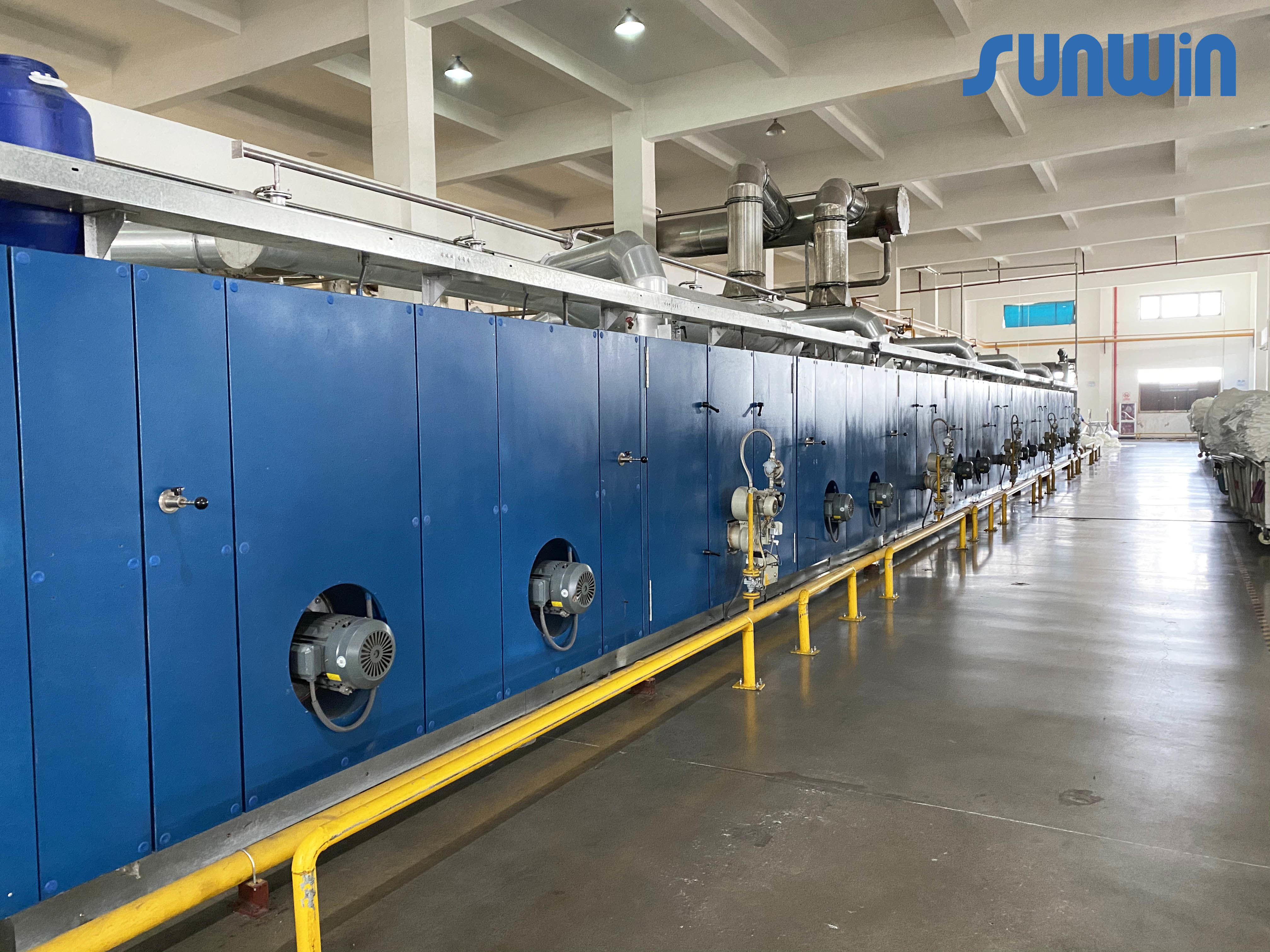

- Each chamber equipped with 2x7.5KW blower motors
- Individual temperature adjustment for each chamber
- Each chamber temperature is adjusted via PLC, which helps control automaticly
Specification:
Model | STH-2200-8 |
Machine width | 2200mm |
Working width | 2000mm |
Speed | 5-100m/min |
Heating system | Thermal Oil/ Steam/ Gas |
Chambers | 8 chambers |
Chain | Horizontal Chain |
Rail | Lubricant type rail |
Selvedge gumming | Option |
Selvedge cutting | Option |
Automatic weft straightener | OPtion |
Application:
Major suitable for open width knitted fabric, woven fabric, warp knitted fleece fabric etc
Machine Flow Process:

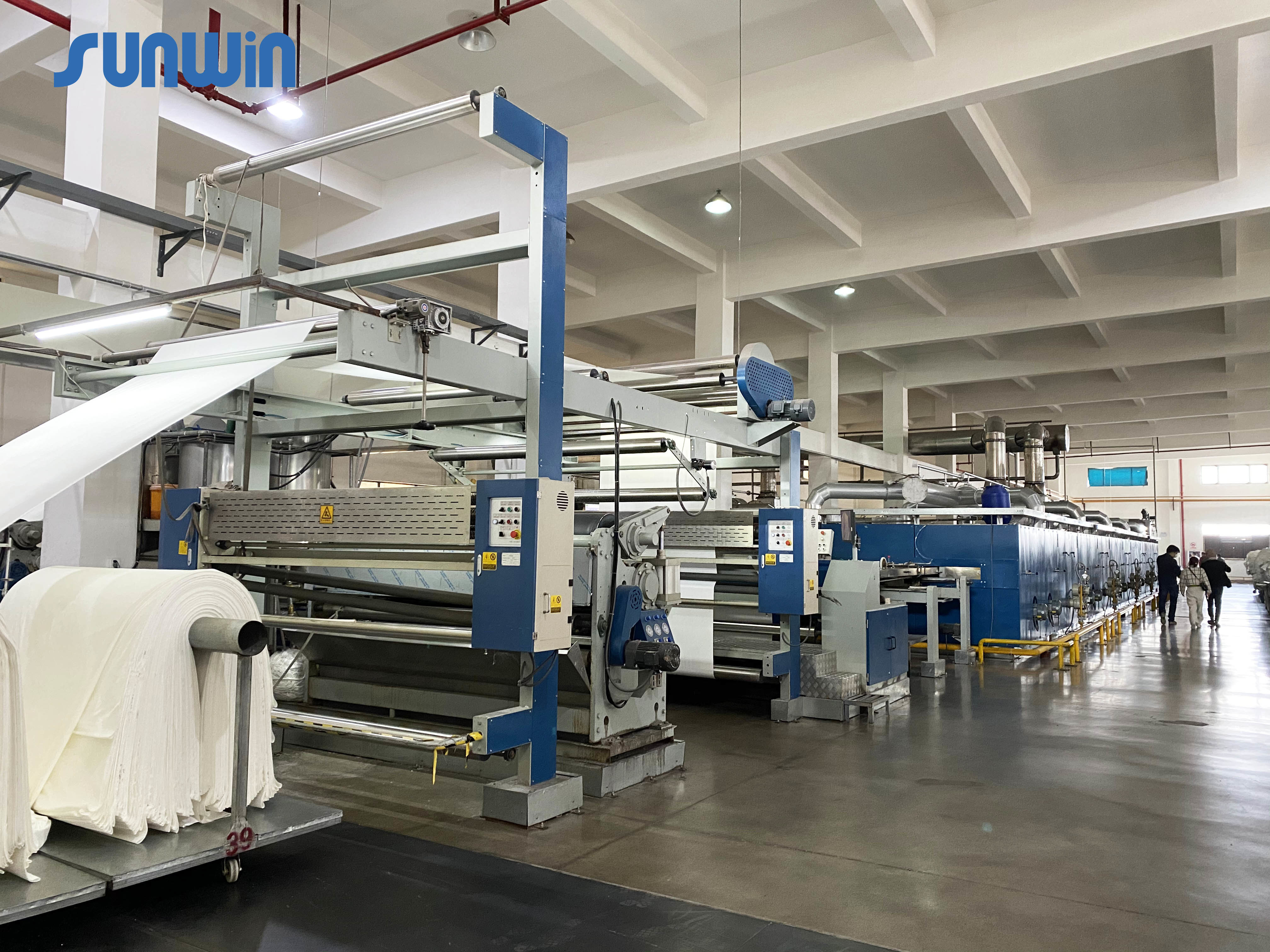

Vertical type entry → Centering device → Padder →Automatic weft straightener → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Gumming → Chambers → Air cooling →Cutting device → Cylinder cooling → Plaiter
Warranty:
1 YEAR WARRANTY PERIOD.
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer
