Loop Steamer 12 Chambers Textile Stenter Finishing Machine 185KW

Basic Information
Place of Origin: CHINA
Brand Name: SUNWIN
Certification: CE
Model Number: STH-3400-8
Minimum Order Quantity: 1 SET
Price: USD5000-350000
Packaging Details: Pallet packing / Wooden box packing
Delivery Time: 60-90 Days
Payment Terms: L/C, T/T
Supply Ability: 10 SET/ MONTH
Detail Information
Color: Blue+ White Heating: Thermal Oil
Condition: NEW Automation Grade: Fully Automatic
Product Name: Stenter Finishing Machine Voltage: 380V/50HZ
Power: 185KW Warranty: 1 Year
High Light:

Loop Steamer Stenter Finishing Machine

,

12 chambers Stenter Finishing Machine

,

textile finishing machine 185KW


Product Description

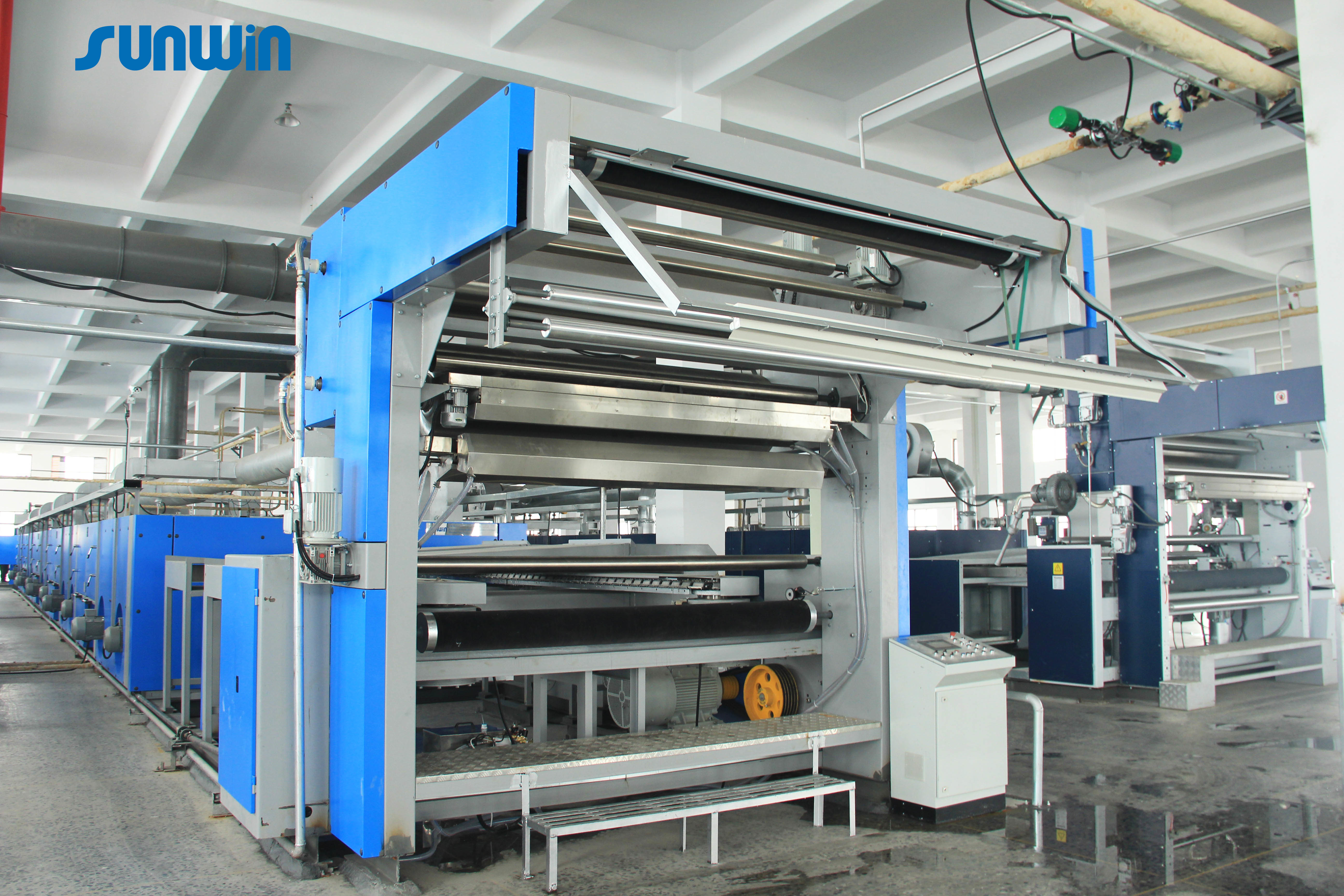

Eco horizontal chain 100m/min speed thermal setting stenter finishing machine



Features:

- No. of chamber available: 4-12 chambers

- The width adjustment can be setted via touch screen panel

- Frequency controlled fan motor

- Each chamber is equipped with 2x 7.5KW circulation motor

- Easily cleaning chamber design, both filter and air nozzles can be taken easily for cleaning



Specification:



Model STH-3400-8
Machine width 3400mm
Working width 3200mm
Speed 5-100m/min
Heating system Thermal Oil
Chambers 8 chambers
Padder 2 rollers
Chain Horizontal Chain
Rail Lubricant type rail
Gumming. cutting unit Option
Inner chamber moisture controller Option



























Application:

Suitable for woven, warp knit, cotton, T/C, Viscose fabrics heat setting finishing. Useful for increase the fabric dimension stability.



Machine Flow Process:

Vertical type entry → Centering device → Padder → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Chambers → Air cooling → Cylinder cooling → Plaiter



Loop Steamer 12 Chambers Textile Stenter Finishing Machine 185KW 0



Warranty:

12 Months upon machine sucessfully running.



FAQ:

Q1. Where is your company ?

Ans.: Our company located in China, Jiangsu Province , Wuxi city .

Q2.: How about your machine warranty ?

Ans: Our machine warranty period is 12 months.

Q3.: How long it takes for our ordered machine ?

Ans.: Normally it takes 2-3 months for machine produce process.

Q4: Did you machine sold to overseas countries ? Or only focus on local market ?

Ans: We not only sell our machine in China domestic market, but also we export our machine to Southeast asia, South Asia, Central Asia, Middle East countries.
