| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUNWIN |
| Certification: | CE |
| Model Number: | STH-3200-8 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD5000-350000 |
| Packaging Details: | Pallet packing / Wooden box packing |
| Delivery Time: | 60-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SET/ MONTH |
| Color: | Blue+ White | Heating: | Thermal Oil |
|---|---|---|---|
| Condition: | NEW | Automation Grade: | Fully Automatic |
| Product Name: | Stenter Finishing Machine | Voltage: | 380V/50HZ |
| Power: | 185KW | Warranty: | 1 Year |
| High Light: | 380V Stenter Finishing Machine,50HZ Stenter Finishing Machine,8 Chamber fabric heat setting machine |
||

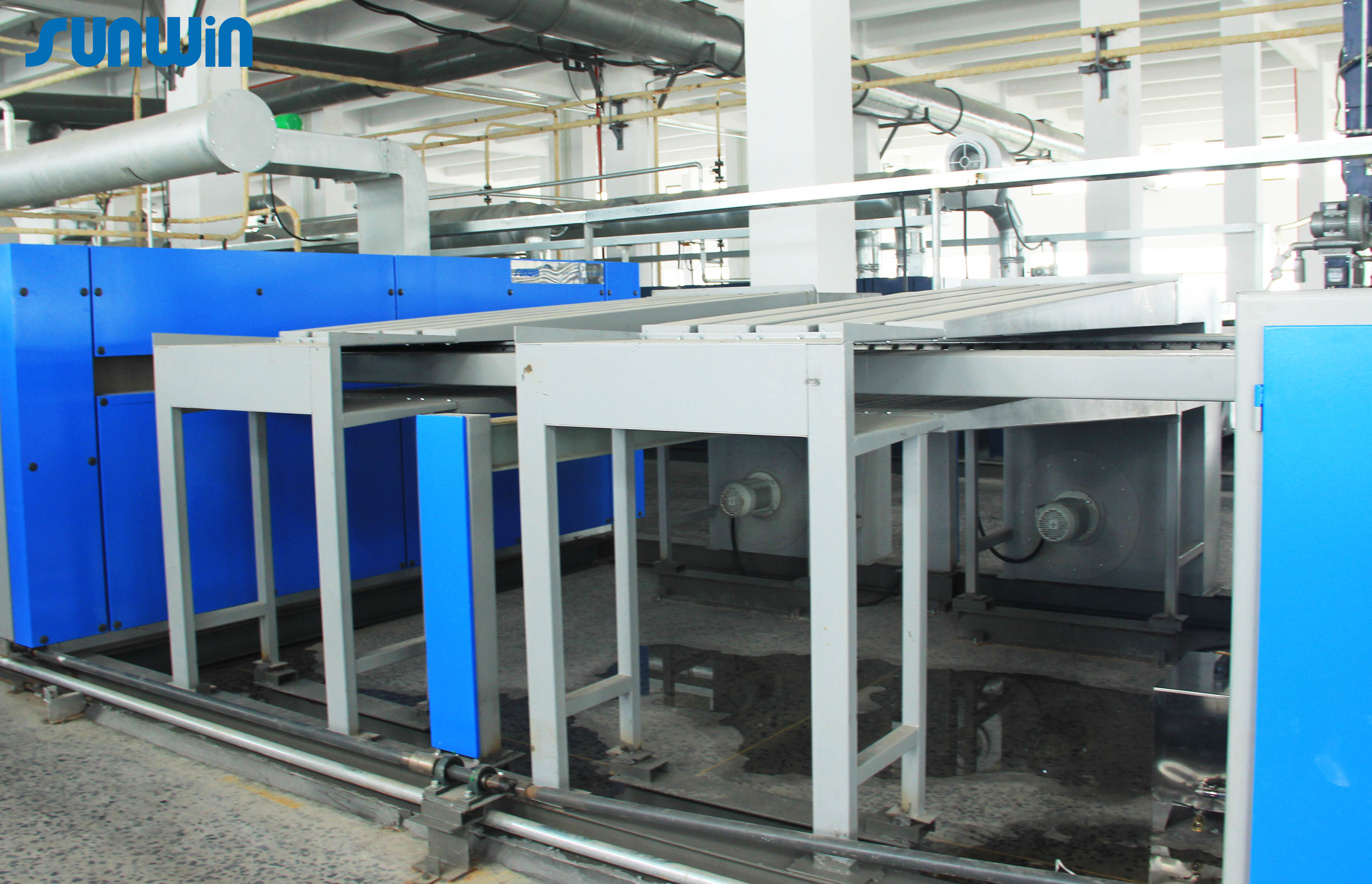

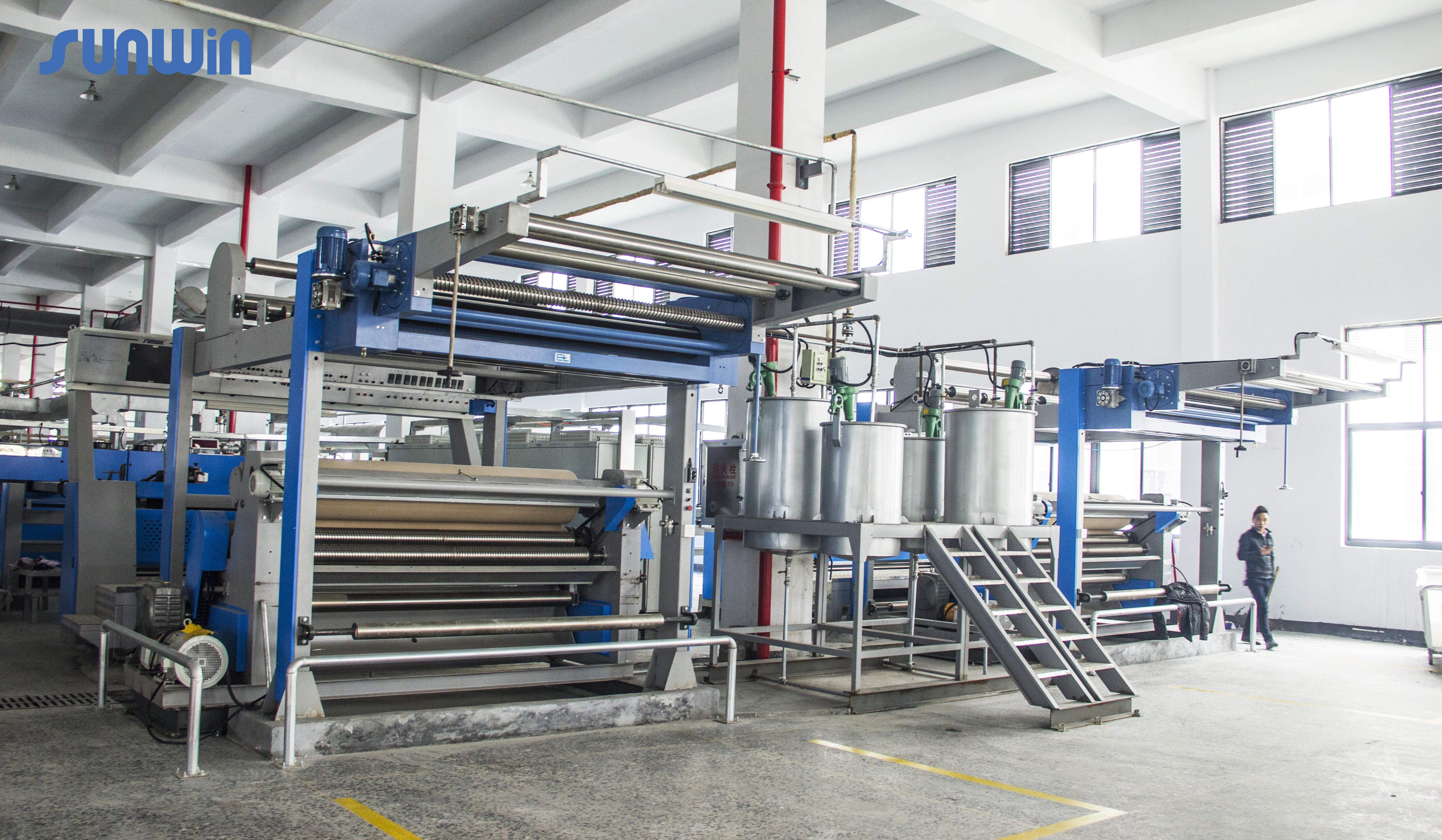

380V 50HZ 8 Chamber heat setting stenter finishing machine for home textile
Features:
- Monitoring of process from central production control panel
- Energy saving construction, greatly improve the source using rate
- Circulation struction designed to get perfect penetration into goods with highest efficiency
- Easily maintenance chamber design, filter and nozzles are easilt to taken out
- Its possible to get maximum efficiency and production capacity
Specification
| Model | STH-3200-8 |
| Machine width | 3200mm |
| Working width | 3000mm |
| Speed | 5-100m/min |
| Heating system | Thermal Oil |
| Chambers | 8 chambers |
| Chain | Horizontal Chain |
| Rail | Lubricant type rail |
Application:
Suitable for woven, warp knit, cotton, T/C, Viscose fabrics heat setting finishing. Useful for increase the fabric dimension stability.
Machine Flow Process:
Vertical type entry → Centering device → Padder → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Chambers → Air cooling → Cylinder cooling → Plaiter
Warranty:
12 Months upon machine sucessfully running.
FAQ:
Q1. Where is your company ?
Ans.: Our company located in China, Jiangsu Province , Wuxi city .
Q2.: How about your machine warranty ?
Ans: Our machine warranty period is 12 months.
Q3.: How long it takes for our ordered machine ?
Ans.: Normally it takes 2-3 months for machine produce process.
Q4: Did you machine sold to overseas countries ? Or only focus on local market ?
Ans: We not only sell our machine in China domestic market, but also we export our machine to Southeast asia, South Asia, Central Asia, Middle East countries.
