Warranty: | 1 Year | Delivery Period: | 3 Months |
---|---|---|---|
Speed: | 5-100m/min | Rail: | Horizontal Rail |
Machine Width: | 2200mm | Working Width: | 2000mm |
Heating System: | Natural Gas | Condition: | NEW |
High Light: | 6m/min Textile Stenter Machine,100m/min Textile Stenter Machine,Steam hot air stenter machine |

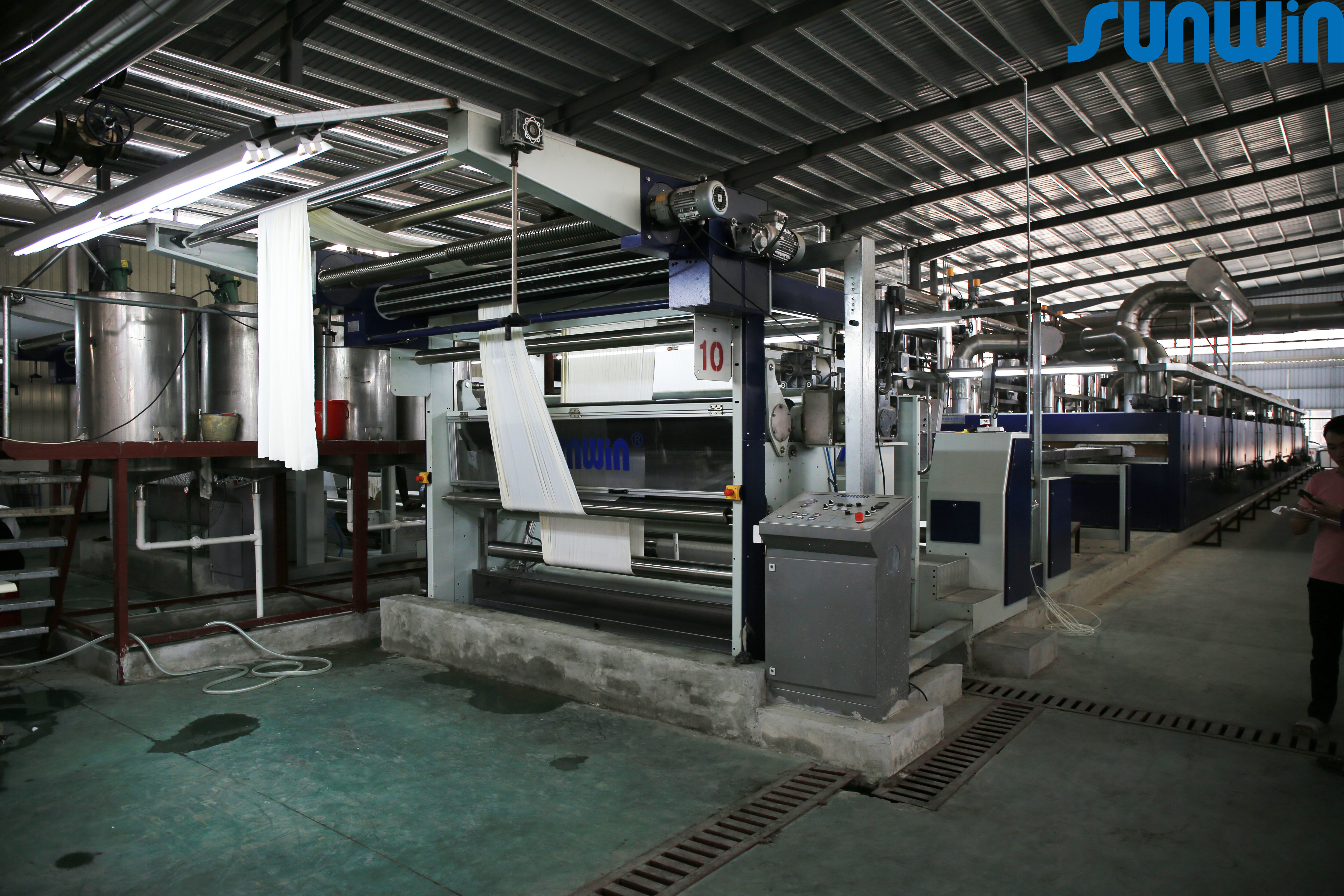

5-100m/min speed knit type steam heating stenter machine
Features:
1. Horizontal type centering device
2. Single padder with 2 rollers, 1 driving roller rubber hardness Shao A 95, 1 set driven roller rubber hardness Shao A 85.

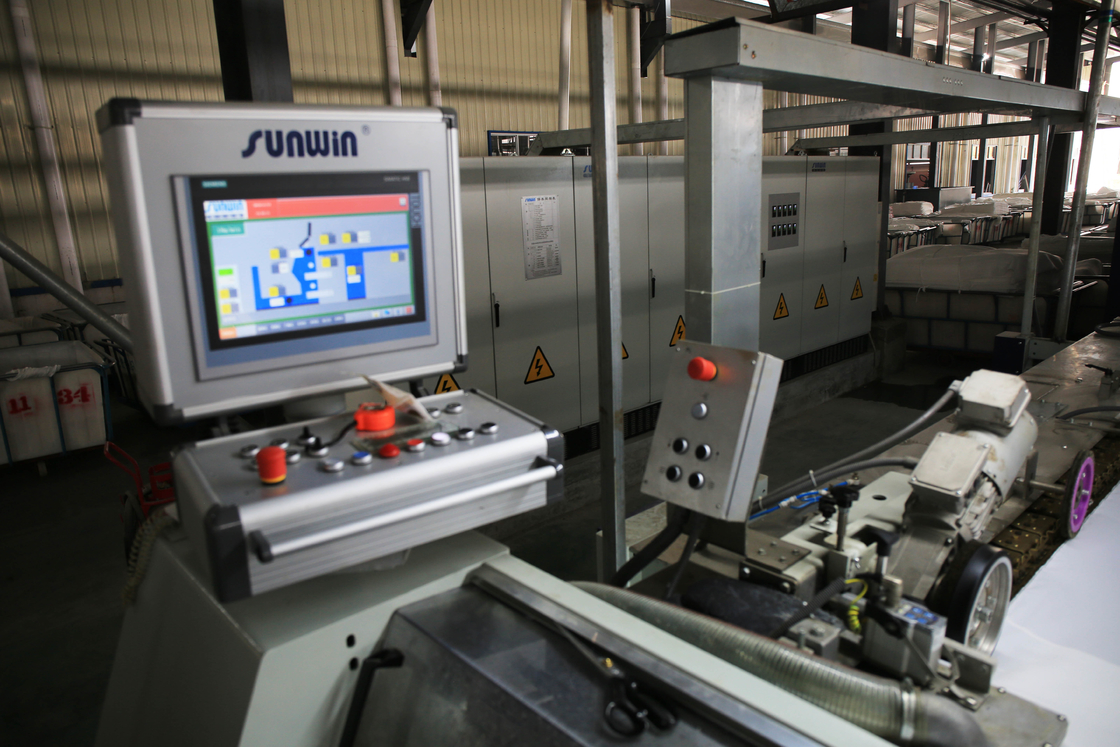

3. Touch Screen Controller, Siemens 15''
4. Overfeed reducer: Lenze Germany
5. Chamber length: 3000mm
6. Insulation panel: 150mm
7. Heating system: Natural Gas
8. Blower motor: Each blower motor 7.5 KW
9. Air cooling device
10. Cylinder cooling device
11. Plaiter
Specification:
Model | KTH-2200-10 |
Machine width | 2200mm |
Working width | 2000mm |
Heating | Gas |
Rail | Lubricant free rail |
Pin | Pin Chain |
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
