High Pressure Padder Cloth Finishing Ram Stenter Machine Process For Woven Fabrics

Basic Information
Place of Origin: CHINA
Brand Name: SUNWIN
Certification: CE
Model Number: STH-2400-9
Minimum Order Quantity: 1 SET
Price: USD5000-300000
Packaging Details: Pallet packing / Wooden box packing
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 7-8 Sets/ Month
Detail Information
Condition: New Model: STH-2400-9
Width: 2400mm Chamber: 9 Chamber
Speed: 5-100m/min Voltage: 380V/50HZ
Weight: 50 T Warranty: 1 Year
High Light:

High Pressure cloth finishing machines

,

Padder cloth finishing machines

,

stenter machine process 2400mm


Product Description

High pressure padder high speed textile stenter ram machine for woven fabrics



Stenter machine technical flow chart:

Fabric entry → Cloth guider → Single padder → Operation platform + Touch Screen Controller → 4 finger uncurler → Infra Red Selvedge Tracing device → Pin chain → 8 chamber → Air cooling → Cylinder cooling → Plaiter



Machine Features:

1. Vertical type entry frame

2. Single padder (inclinder type) , 2 padder roller are coated with synthetic rubber, diameter 350mm.

3. Infra red tracing device, automatic selvedge tracing system

4. Exhausting pipe are connected to each chamber, pipe thickness is 1.5mm

5. Chamber insulation panel thickness is 150mm

6. Chamber bottom panel thickness is 100mm



Lead time 90 days
Loading port Shanghai, China
Warranty 1 Year

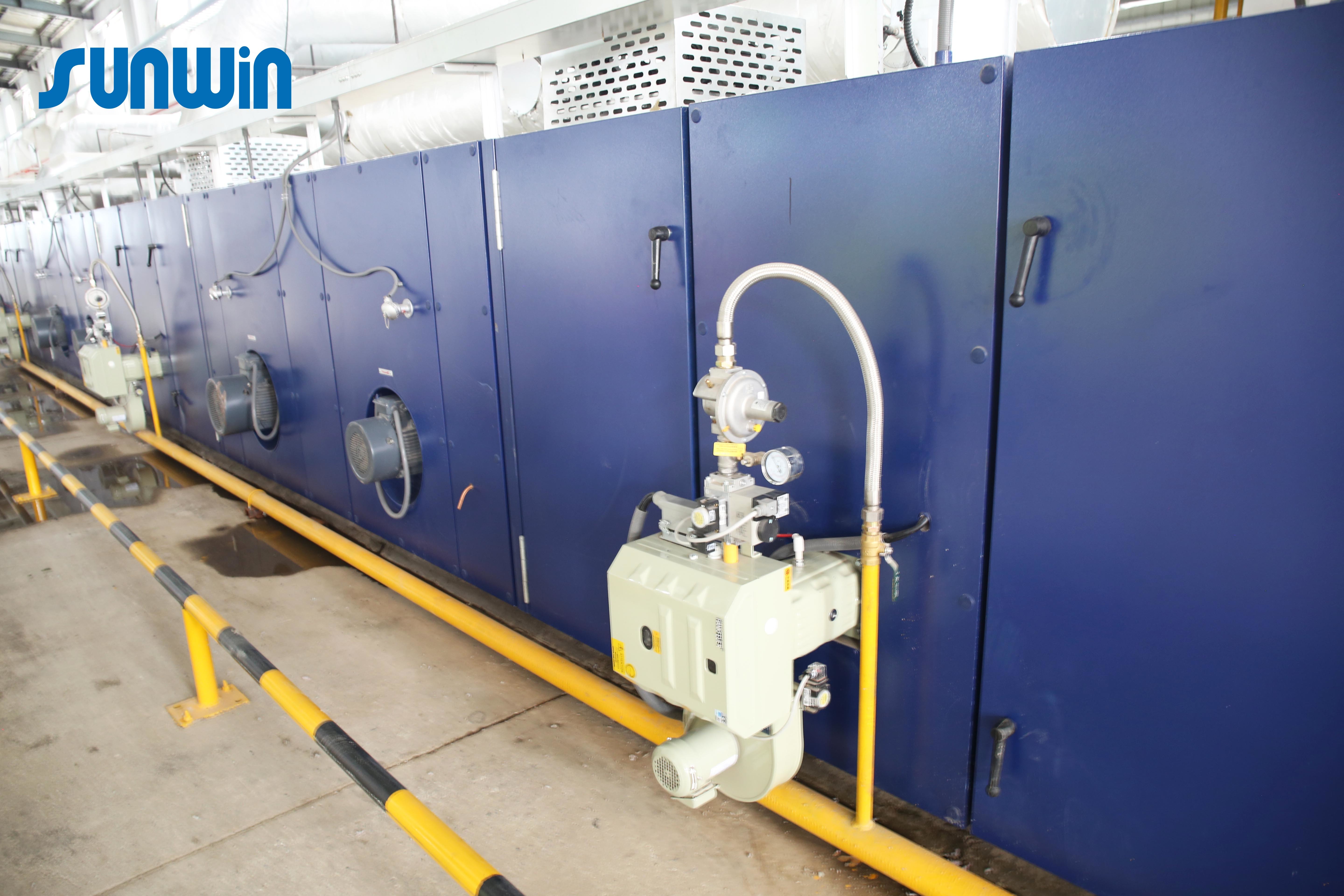

High Pressure Padder Cloth Finishing Ram Stenter Machine Process For Woven Fabrics 0



Factory Tour:

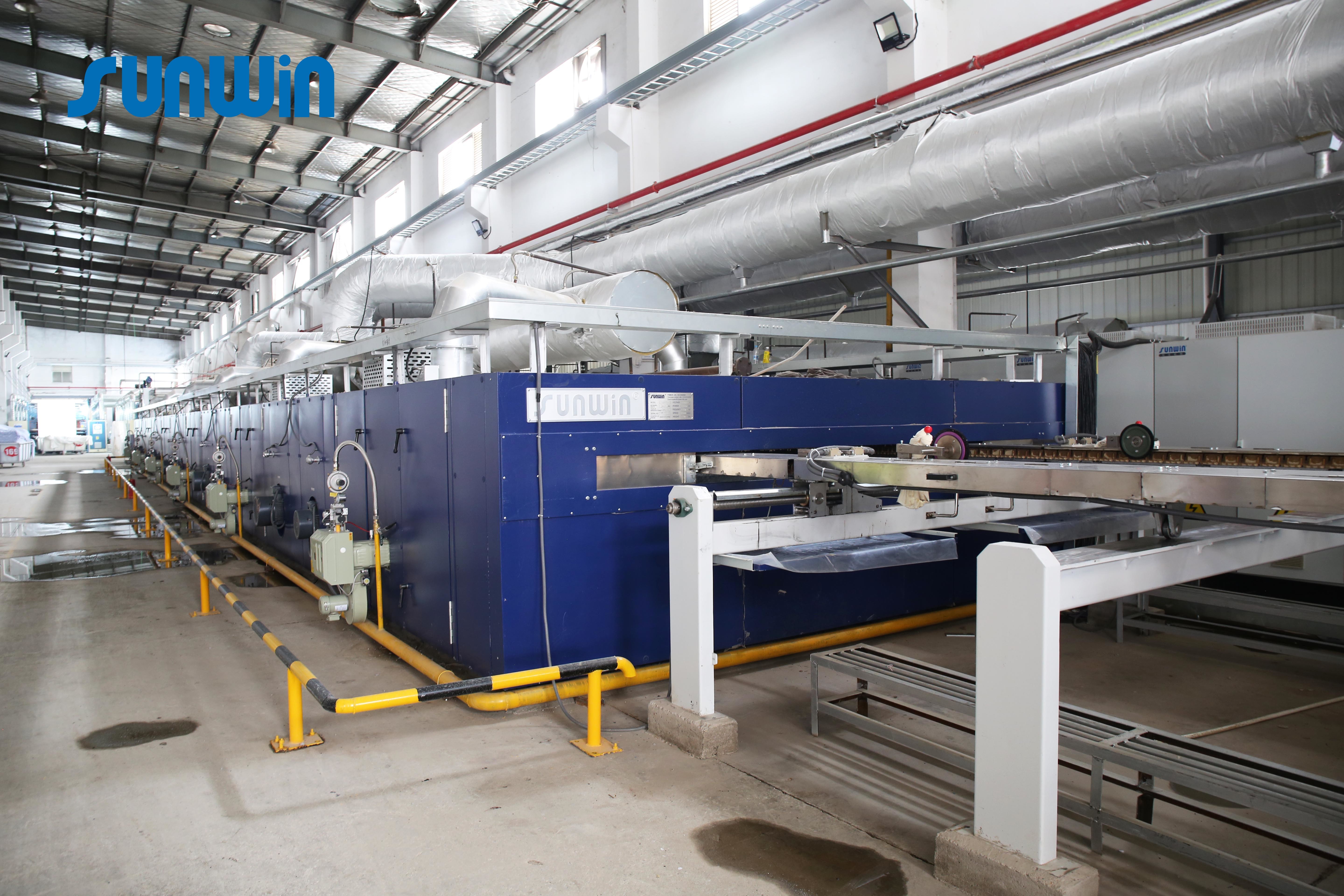

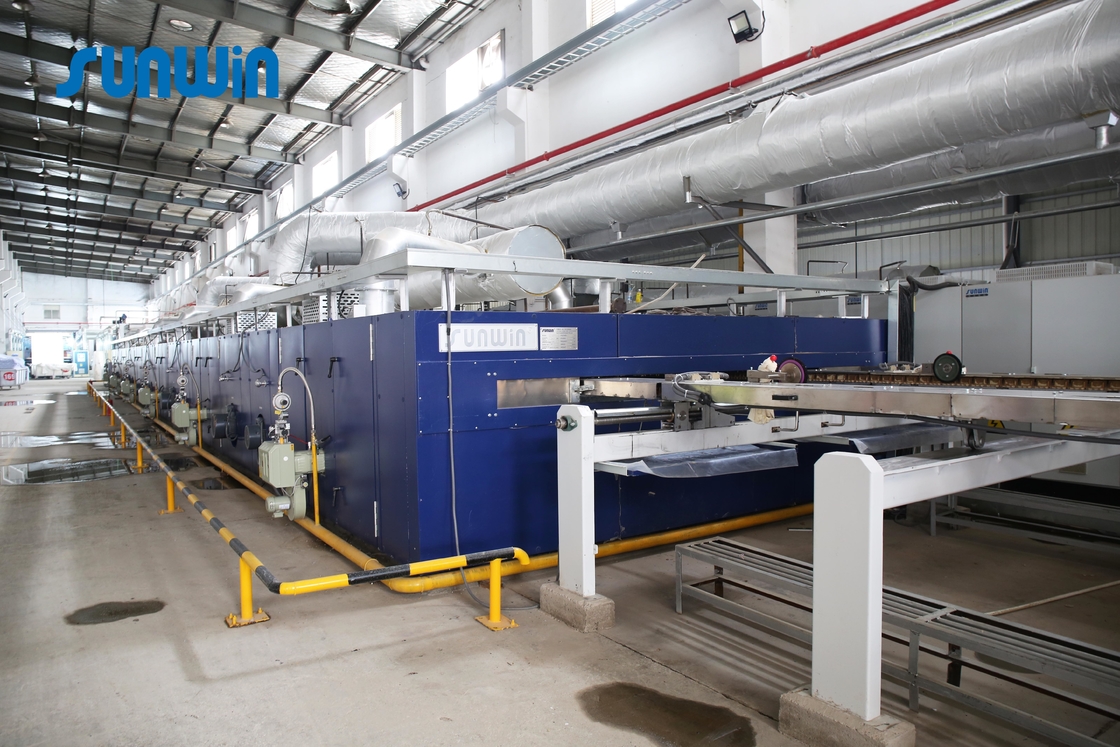

High Pressure Padder Cloth Finishing Ram Stenter Machine Process For Woven Fabrics 1
