Color: | Dark Blue | Voltage: | 380V/50HZ |
---|---|---|---|
Machine Speed: | 5-100m/min | Heating System: | Thermal Oil |
Service: | Overseas Service Provided | Warranty: | 1 Year |
High Light: | Polyester fabric stenter machine,Thermal Oil fabric stenter machine,stenter finishing process 3000mm |

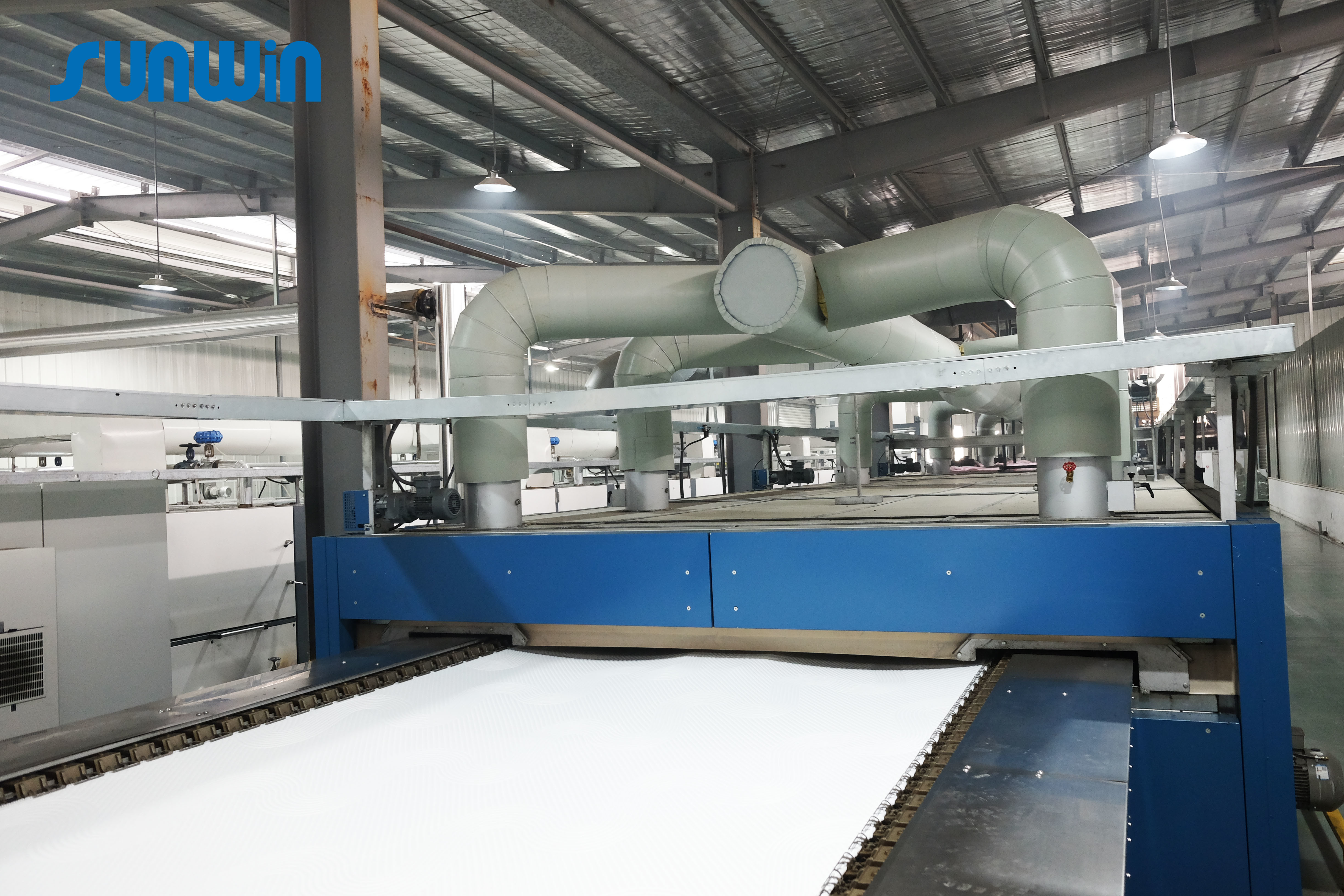

Polyester fabric thermal oil high speed stenter setting machine
Features:
1. Horizontal type entry with centering device
2. Single padder with double roller padding system
3. Operation platform with touch screen controller 15''
4. Horizontal type rail

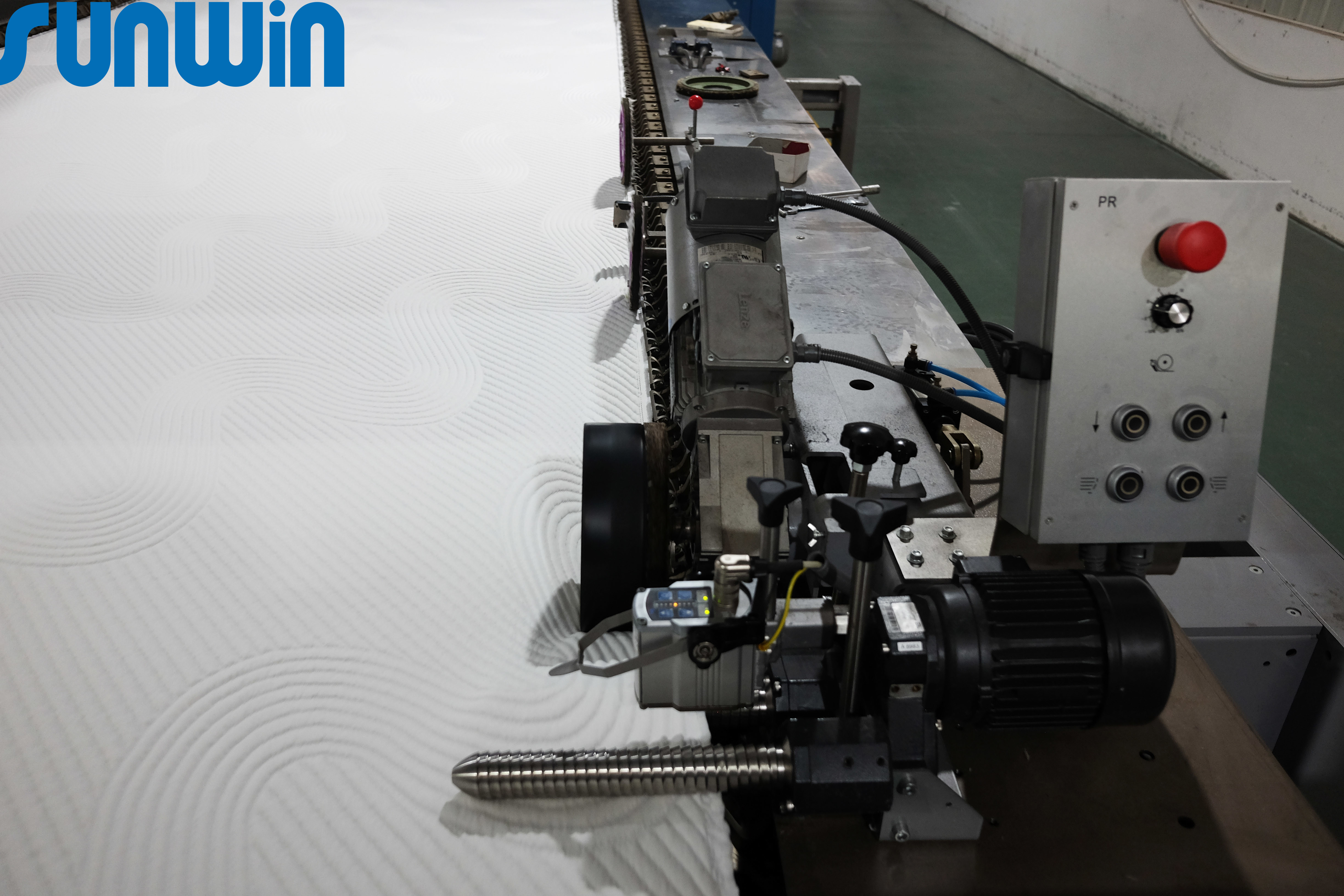

5. Infrared tracing device and fabric overfeeding device
6. Drying chambers
7. Air cooling device
8. Fabric plaitering for exit
Specification
Model | KTH-3200-10 |
Max. working width | 3000mm |
Chamber | 10 chamber |
Speed | 5-100m/min |
Heating system | Thermal oil |
Chain | Horizontal type |
Rail | Lubricant free rail |
Warranty | 12 months |
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
