| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUNWIN |
| Certification: | CE |
| Model Number: | STH-3000-8 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD5000-320000 |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 7-8 Sets/ Month |
| Condition: | NEW | Product Name: | Textile Dyeing Machine |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Model: | STH-3000-8 |
| Machine Width: | 3000mm | Working Width: | 2800mm |
| Speed: | 5-100m/min | Warranty: | 1 Year |
| High Light: | 2800mm Textile Dyeing Machine,100m/min Textile Dyeing Machine,8 chamber Drying stenter finishing process |
||

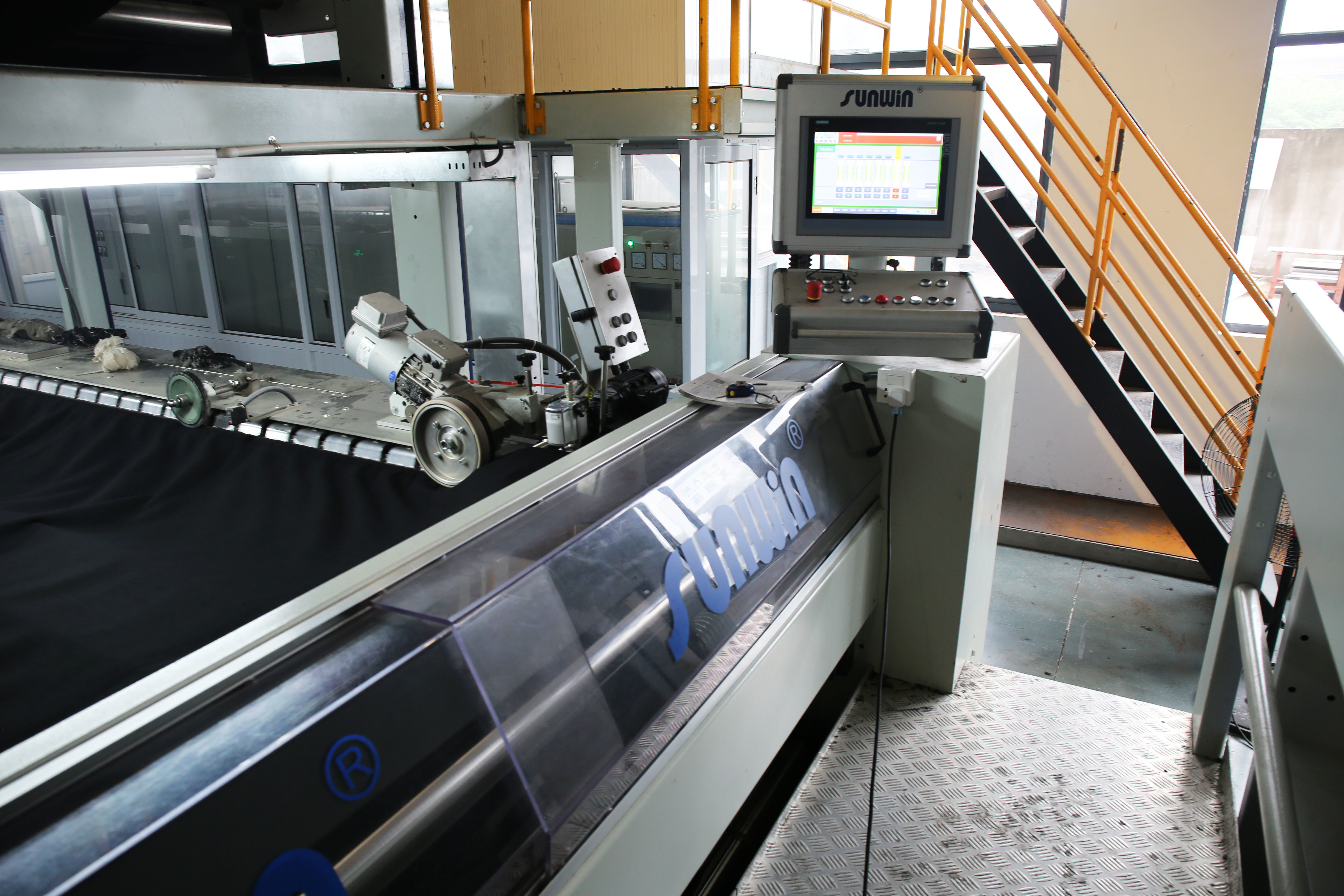

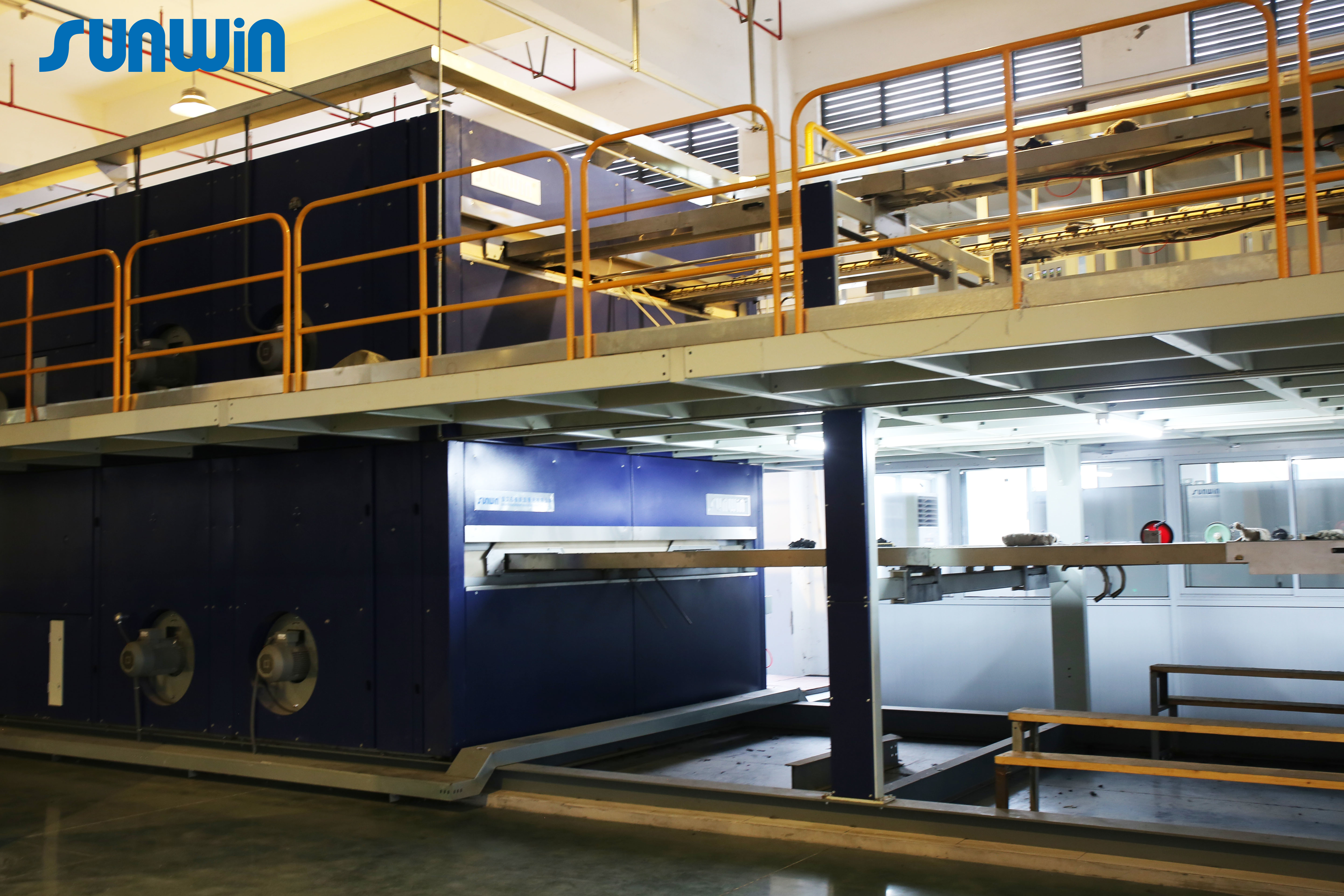

fabirc dyeing process drying stenter finishing machine
Features:
- Module type configuration for variable process application
- Designed by considering to save minium space in plant
- Motorized width adjustment system
- Width adjustment with individual drives
- Gas , steam or thermal oil can be used for machine heating
- Max. tempertaure 230 degree
- Special construction to achieve maximam avaporation capacity
- Each chamber equipped with 2x7.5KW blowing fan
- Machine construction easily for maintenance and cleaning
Specifications:
| Model | STH-3000-8 |
| Machine width | 3000mm |
| Working width | 2800mm |
| Chamber | 8 chamber |
| Heating system | Natural Gas |
| Chain | Horizontal Chain |
| Rail | Lubricant free rail |
| Speed | 5-100m/min |
| Temperature | 230℃ |
| Cooling | Air cooling system+ cylinder cooling |
| Inner chamber moisture controller | Option |
| Automatic weft straightener | Option |
Company Introduction:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery soluation for our customer, upgrade the product quality and create values for our customer.
