Condition: | NEW | Product Name: | After Tubular Knit Fabric Dyeing Bleaching Fabric Drying Heat Setting Stenter Machine |
---|---|---|---|
Automatic Grade: | Fully Automatic | Model: | STH-2600-8 |
Voltage: | 380V/50HZ | Power: | 185KW |
Color: | Blue+ White | Warranty: | 1 Year |
Weight: | 50 T | Service: | Overseas Service Available |
High Light: | 8 chamber jigger dyeing machine,Woven Fabric jigger dyeing machine,Fabric Heat Setting Machine 100m/min |

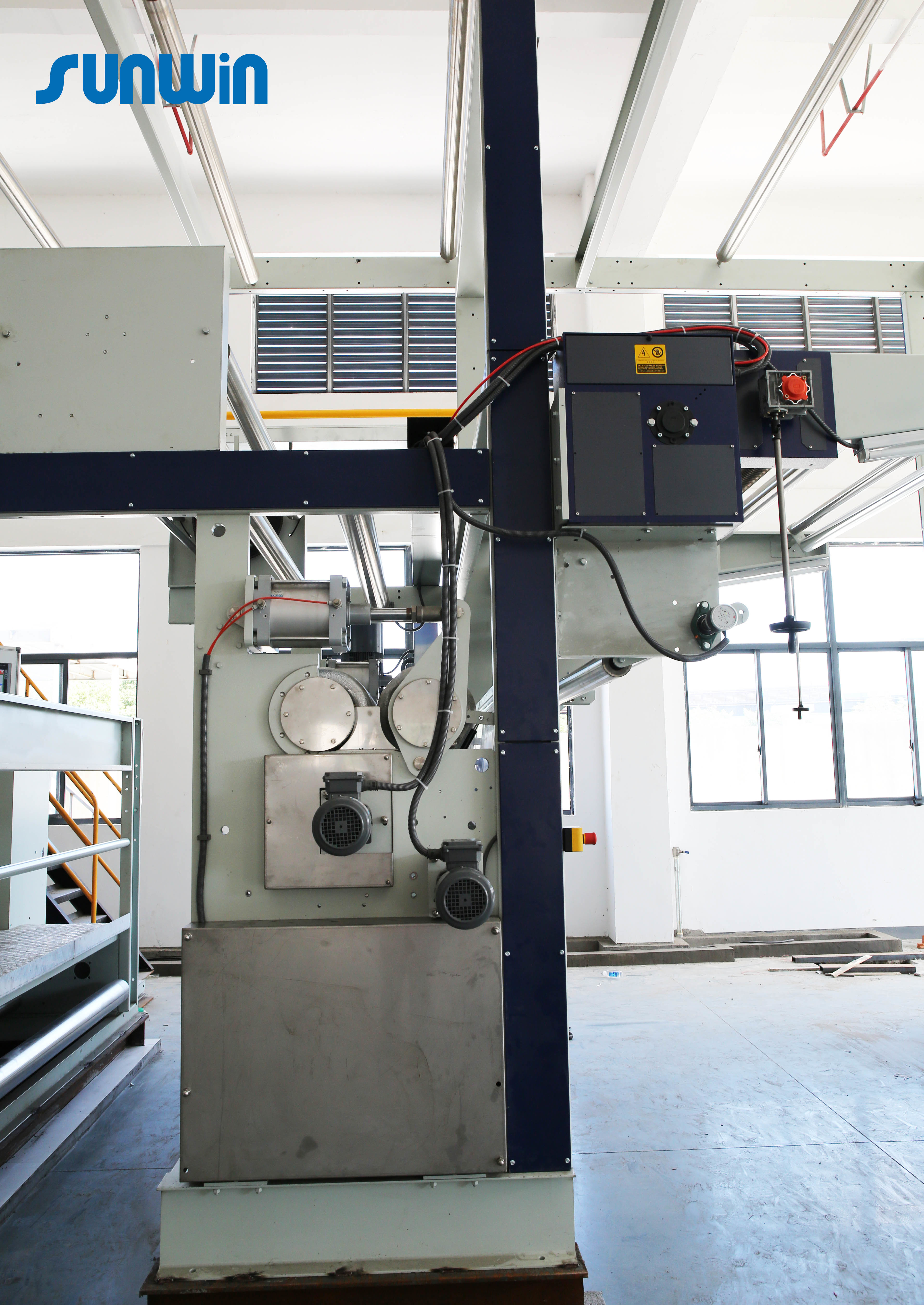

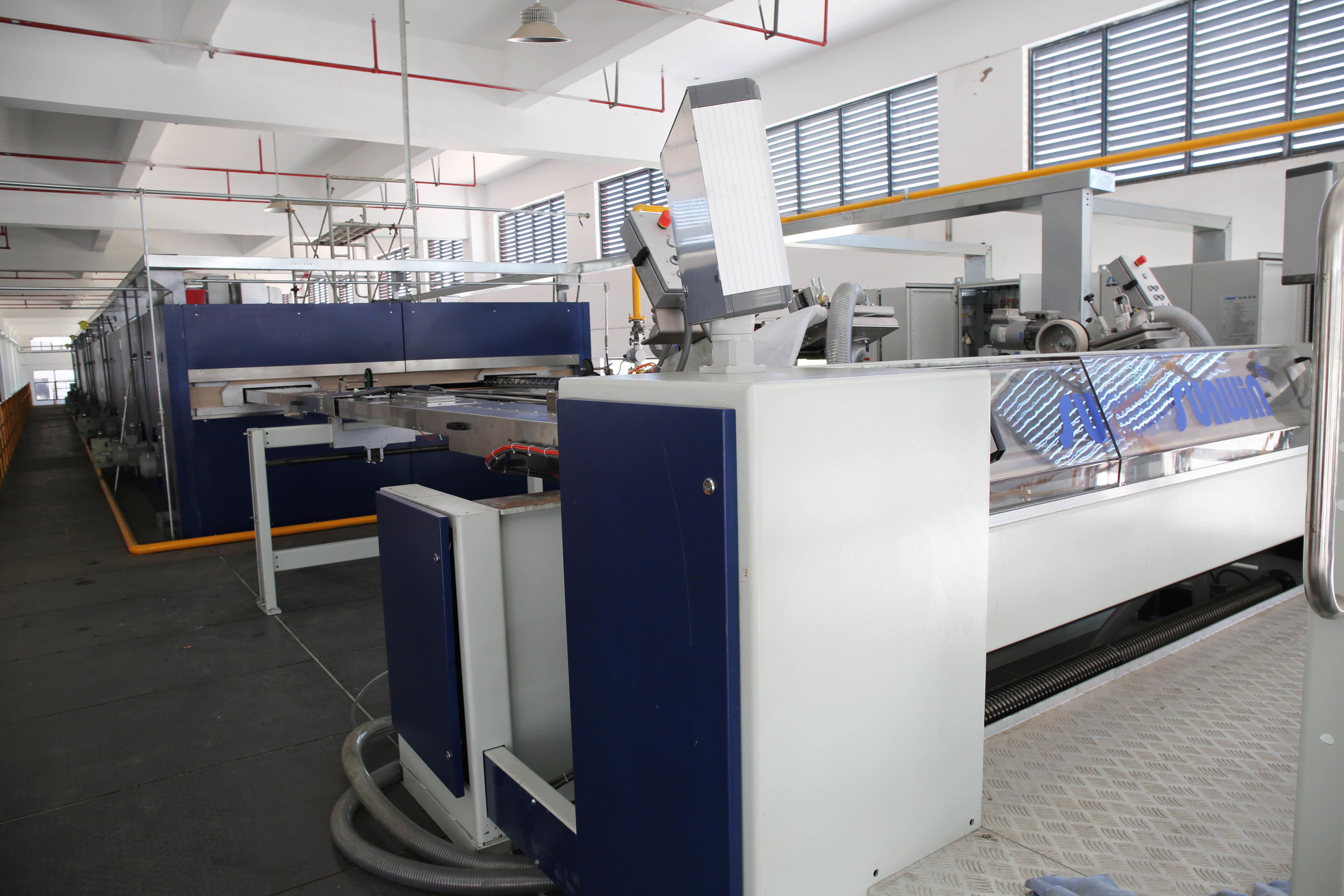

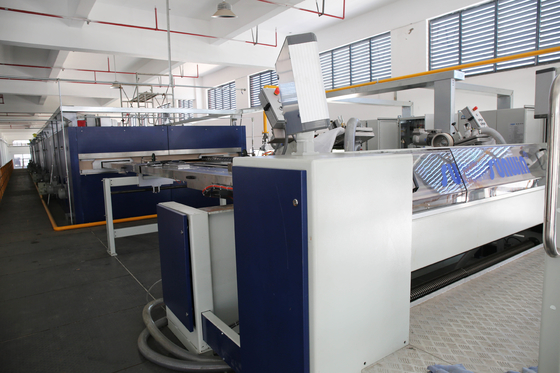

after jigger dyeing woven fabric drying setting stenter machine
Features:
- Max. working tempertaure: 230℃
- Special nozzles for different kinds of fabric
- Machine speed: 5-100m/min
- Frequency controlled fan motor
- Individual temperature adjustment for each chamber
Specifications:
Model | STH-2600-8 |
Machine width | 2600mm |
Working width | 2400mm |
Chamber | 8 chamber |
Heating system | Natural Gas |
Chain | Horizontal Chain |
Rail | Lubricant free rail |
Speed | 5-100m/min |
Temperature | 230℃ |
Cooling | Air cooling system |
Company Introduction:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery soluation for our customer, upgrade the product quality and create values for our customer.
