Condition: | NEW | Automatic Grade: | Fully Automatic |
---|---|---|---|
Automation: | PLC+ Inverter | Weight: | 60T |
Voltage: | 380V/50HZ | Power: | 210KW |
Warranty: | 1 Year | Service: | Overseas Service Available |
Color: | White | Speed: | 5-100m/min |
Working Width: | 2800mm | Heating System: | Gas/ Thermal Oil/ Steam |
High Light: | 2800mm mini stenter textile machine,Loop Steamer mini stenter textile machine,fabric finishing machine 10 chamber |

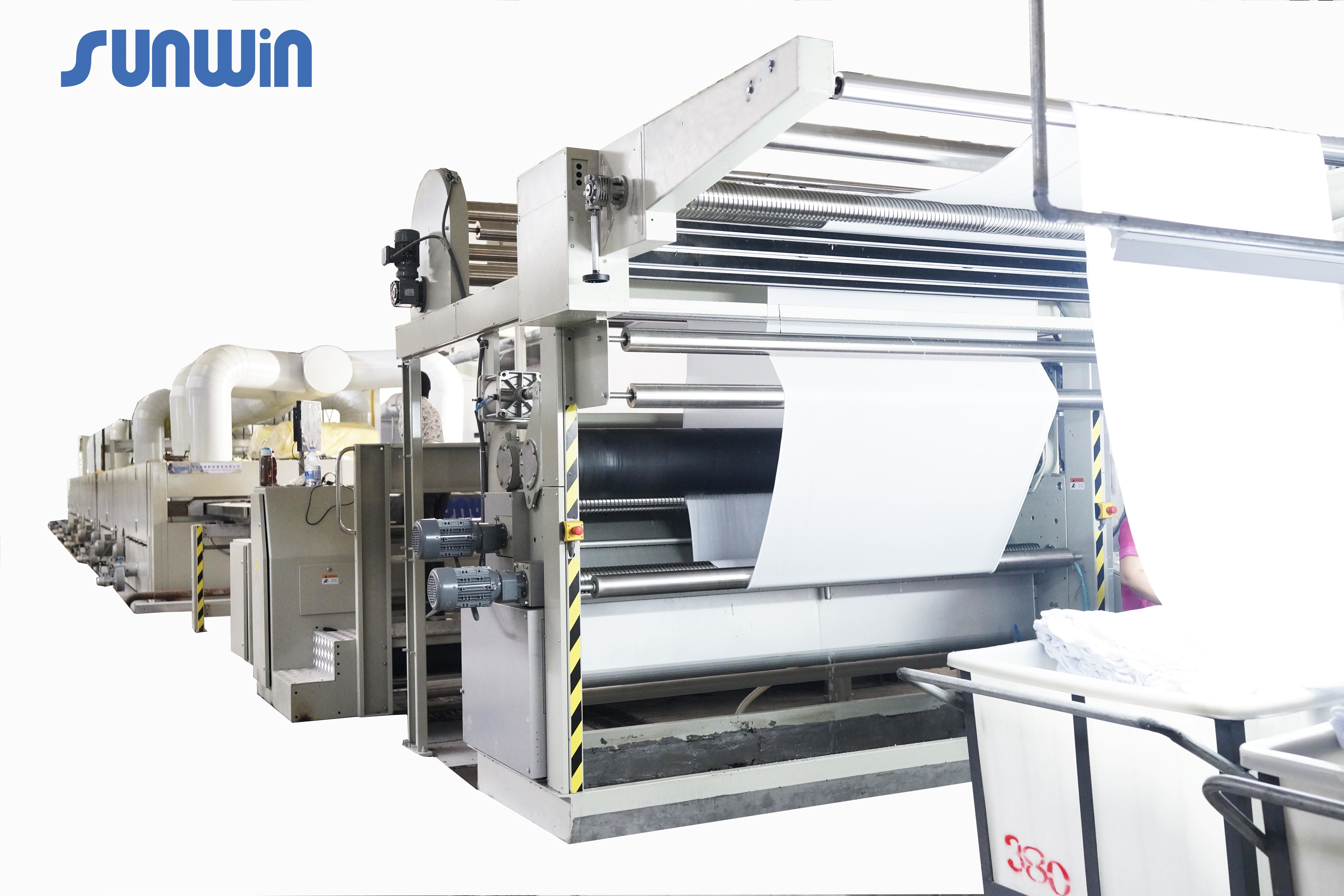

loop steamer printing fabric stenter machine for woven fabrics
Features:

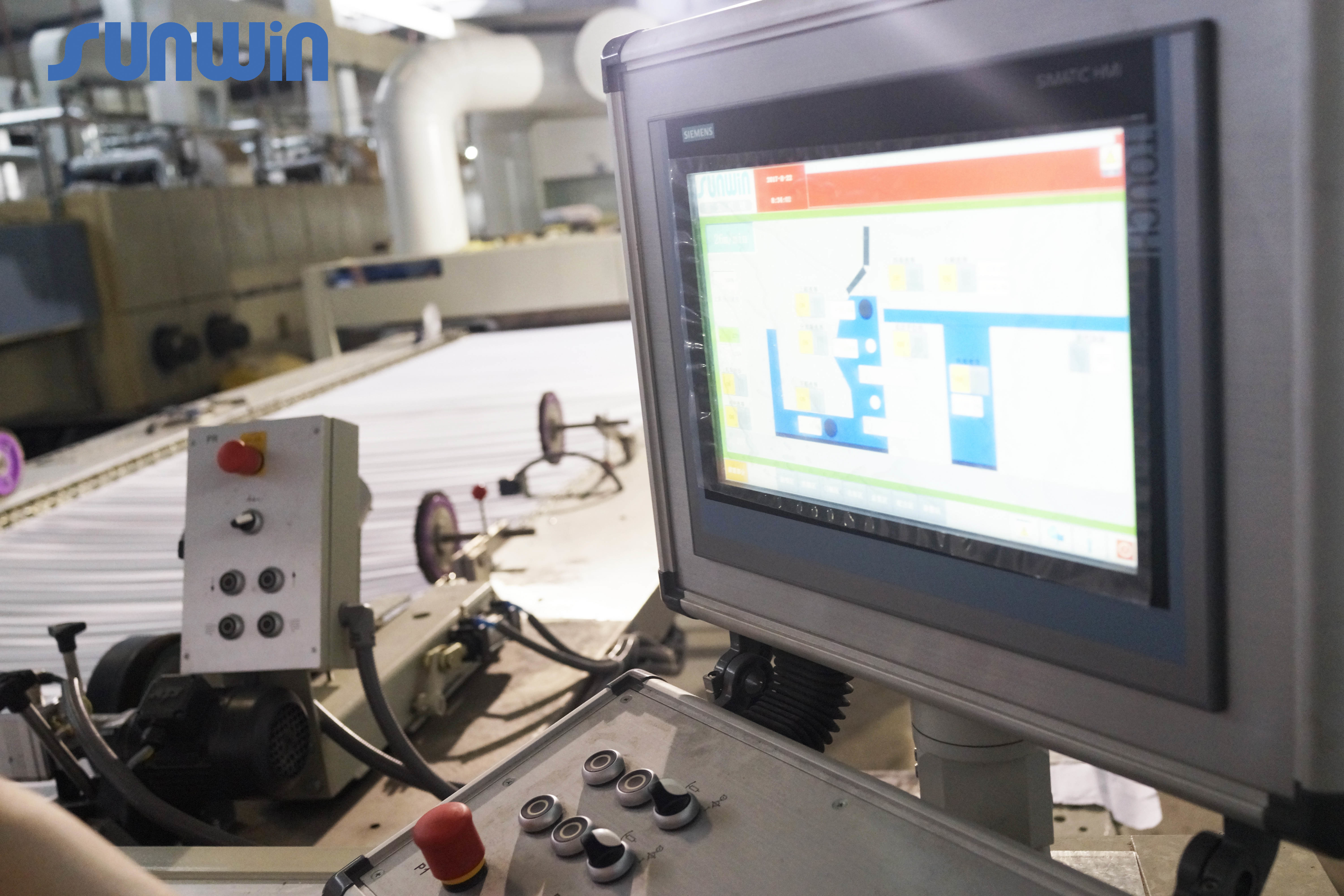

- All the functions controlled via central production control panel
- All the machine setting carried out as automaticlly
- Each chamber length 3000mm
- Insulation panel thickness 150mm
- Individual configuration for knit and woven fabric
- Thermal oil, steam or gas can be used for heating system
- Individual temperature control for each chamber
- Each chamber is adjusted via PLC
Specification:
Model | KTH-3000-10 |
Machine width | 3000mm |
Working width | 2800mm |
Chamber | 10 chamber |
Speed | 5-100m/min |
Heating system | Thermal Oil/ Gas |
Rail | Horizontal type rail |
Overfeed rate | -30% ~ +80% |
Cooling | Air cooling |
Fabric exit | Plaiter + roll batching |
Inner chamber Moisture control | Option |
Automatic weft straightener | Option |
Company Introduction:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer. With continuous efforts on technical innovations and quality improvement, our team and equipment are further developed.
