Automatic Weft Straightener Heat Setting Fabric Stenter Machine Gas Heated

Basic Information
Place of Origin: CHINA
Brand Name: SUNWIN
Certification: CE
Model Number: KTH-2400-10
Minimum Order Quantity: 1 SET
Price: USD5000-320000
Packaging Details: Standard Export Packing
Delivery Time: 90 Days
Payment Terms: L/C, T/T
Supply Ability: 7-8 Sets/ Month
Detail Information
Condition: NEW Automatic Grade: Fully Automatic
Automation: PLC+ Inverter Weight: 55T
Voltage: 380V/50HZ Power: 210KW
Warranty: 1 Year Service: Overseas Service Available
High Light:

Heat Setting Fabric Stenter Machine 55T

,

Fabric Stenter Machine Gas heated

,

weft straightener machine 2400mm


Product Description

Gas heated stenter machine for heavy weight fabric



Features:

- All the functions controlled via central production control panel

- All the machine setting carried out as automaticlly

- User friendly visual parameters

- Ideal heat setting values

- Individual temperature control for each chamber



Specification:

Model KTH-2400-10
Machine width 2400mm
Working width 2200mm
Chamber 10 chamber
Speed 5-100m/min
Heating system Thermal Oil/ Gas
Rail Horizontal type rail
Overfeed rate -30% ~ +80%
Cooling Air cooling
Fabric exit Plaiter + roll batching

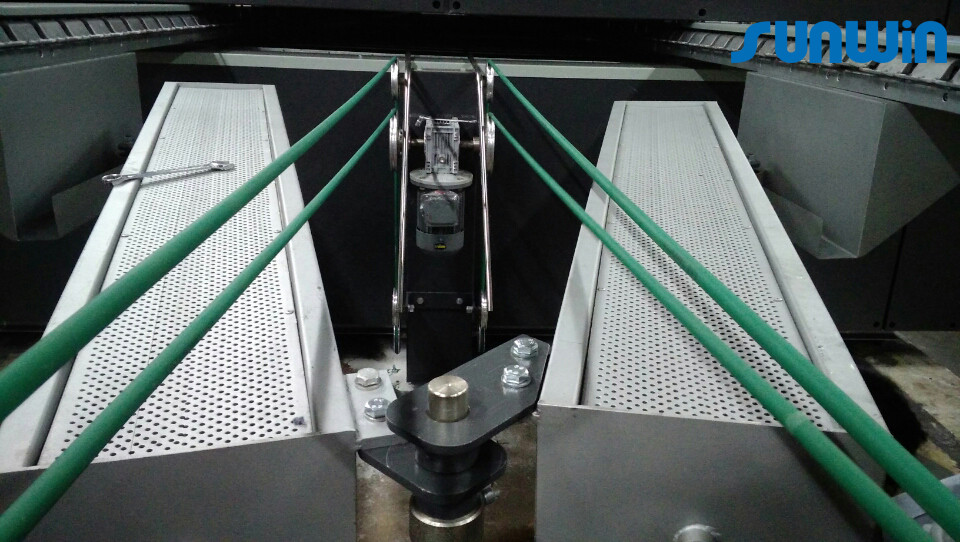

Automatic Weft Straightener Heat Setting Fabric Stenter Machine Gas Heated 0



Company Introduction:

Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer. With continuous efforts on technical innovations and quality improvement, our team and equipment are further developed.

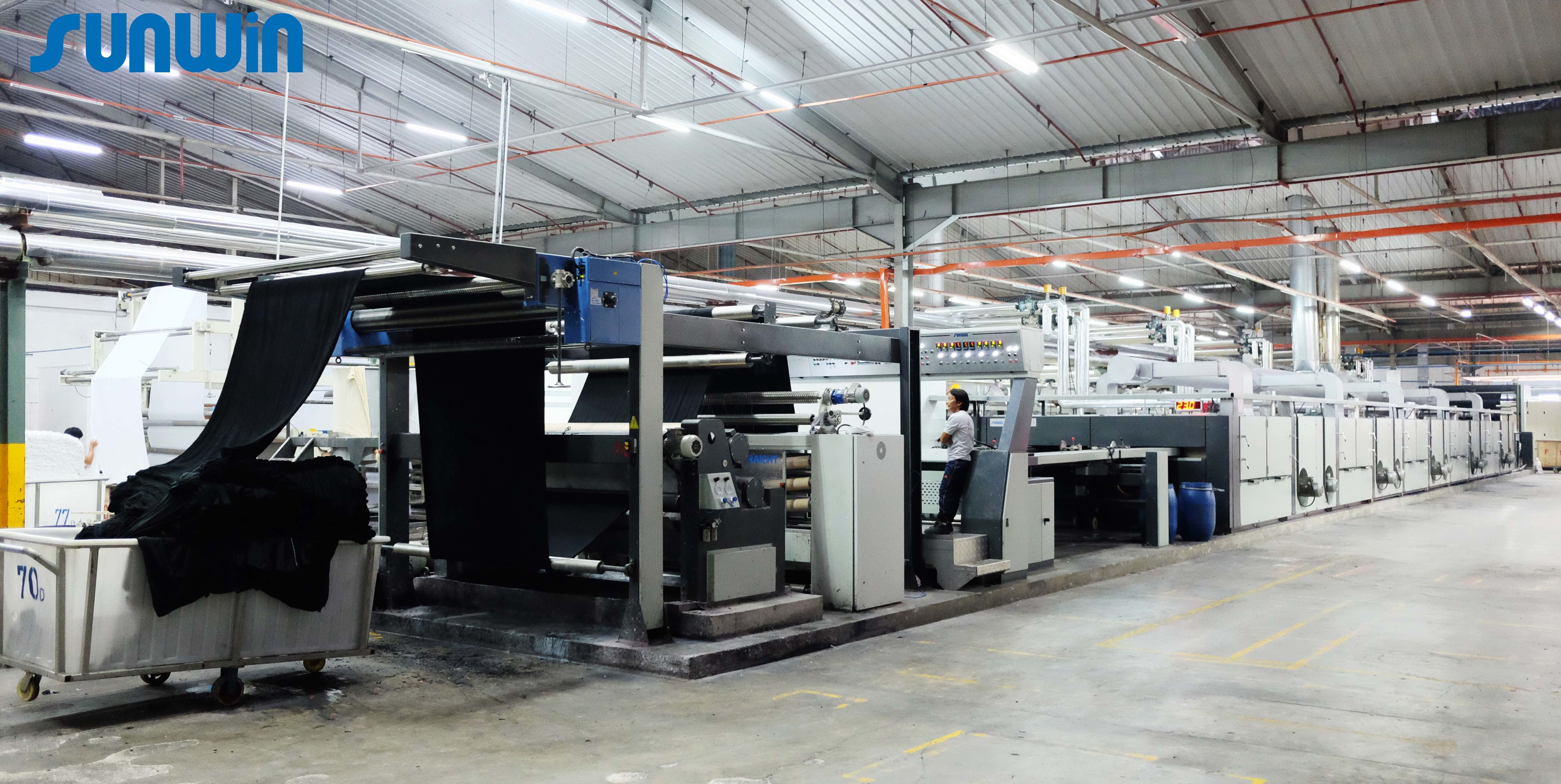

Automatic Weft Straightener Heat Setting Fabric Stenter Machine Gas Heated 1
