Condition: | NEW | Product Name: | Hot Air Stenter Machine |
---|---|---|---|
Automatic Grade: | Fully Automatic | Automation: | PLC+ Inverter |
Voltage: | 380V/50HZ | Power: | 185KW |
Warranty: | 1 Year | Service: | Overseas Service Available |
Weight: | 60 T | Color: | Blue+ White |
High Light: | Tumble Dryer Hot Air Stenter Machine,185KW Hot Air Stenter Machine,cloth finishing machines for woven fabrics |

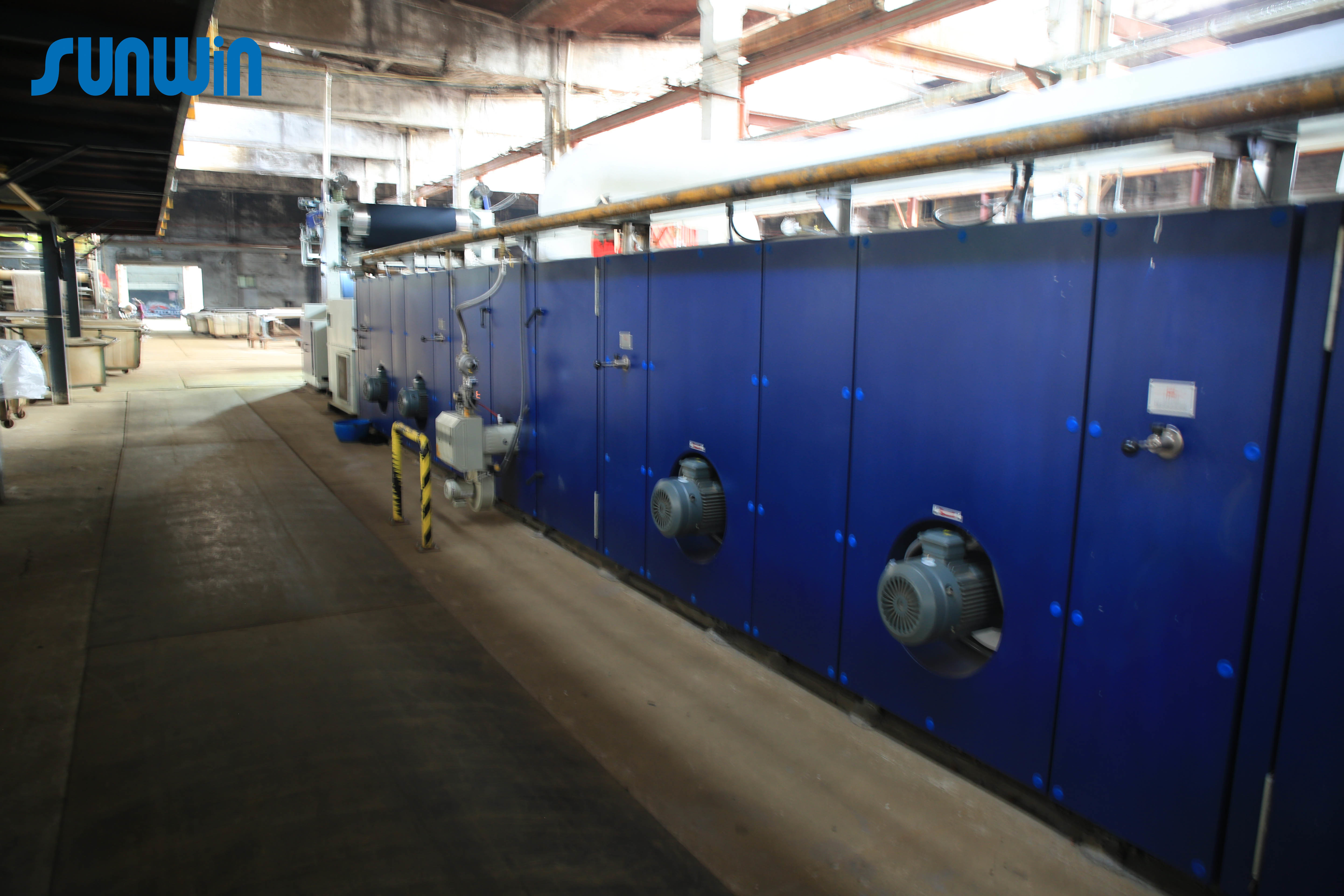

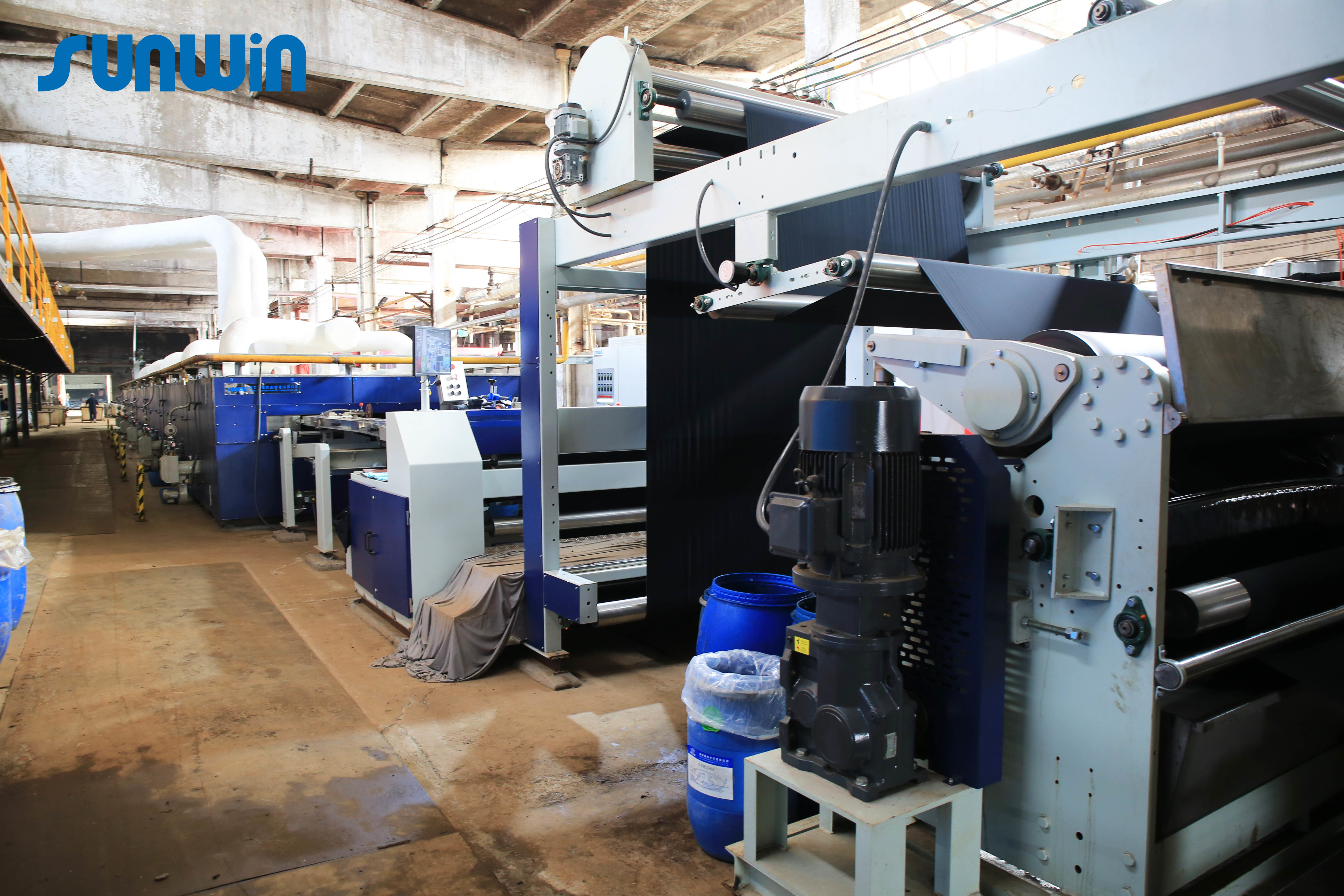

After continuous tumble dryer hot air stenter finishing machine for woven fabrics
Features:
- Each chamber equipped with 2x7.5 KW blower motor
- Individual temperature adjustor for each chamber
- Fan speed adjustment as frequency controlled
- 150mm thickness insulation panel
- Easily cleaning chamber design
- Ideal heat setting value
Specification:
Model | STH-3600-10 |
Machine width | 3600mm |
Working width | 3400mm |
Speed | 5-100m/min |
Chamber | 10 chamber |
Temperature | 230 degree |
Rail | Horizontal rail |
Chain | Pin chain |
Heating system | Natural Gas |
Cooling | Air cooling device |
Inner moisture controller | Option |
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery soluation for our customer, upgrade the product quality and create values for our customer.
