| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUNWIN |
| Certification: | CE |
| Model Number: | KTH-2600-8 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD5000-300000 |
| Packaging Details: | Pallet packing / Wooden box packing |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 7-8 Sets/ Month |
| Condition: | New | Machine Width: | 2600mm |
|---|---|---|---|
| Working Width: | 2400mm | Chamber: | 8 Chamber |
| Voltage: | 380V/50HZ | Speed: | 5-100m/min |
| Weight: | 50 T | Warranty: | 1 Year |
| High Light: | CE stenter finishing process machine,stenter finishing process equipment 50HZ,stenter machine process 2400mm |
||
single padder inverter speed controlled hot air stenter machine for warp knit fabric
Main flow chart:
Fabric entry → Centering device → Single padder → Operation platfrom + 15‘’ Touch screen controller → 4 finger uncurler → Infra red selvedge tracing device → Pin chain → 8 chambers → Air cooling → Cooling cylinder → Plaiter ( With static electricity eliminator)
Each Stenter Consist:
| Centering device | 1 set |
| Infra red selvedge tracing device | 1 set |
| 4 finger uncurler (E+L) | 1 set |
| Speed indicator | 1 set |
| Heat setting chamber | 8 chamber |
| Air cooling | 1 set |
| Water cooling cylinder | 2 sets |
| Fabric exit anti-static electricity | 1 set |
| Main cabinet | |
| The wire from main control cabinet to machine |

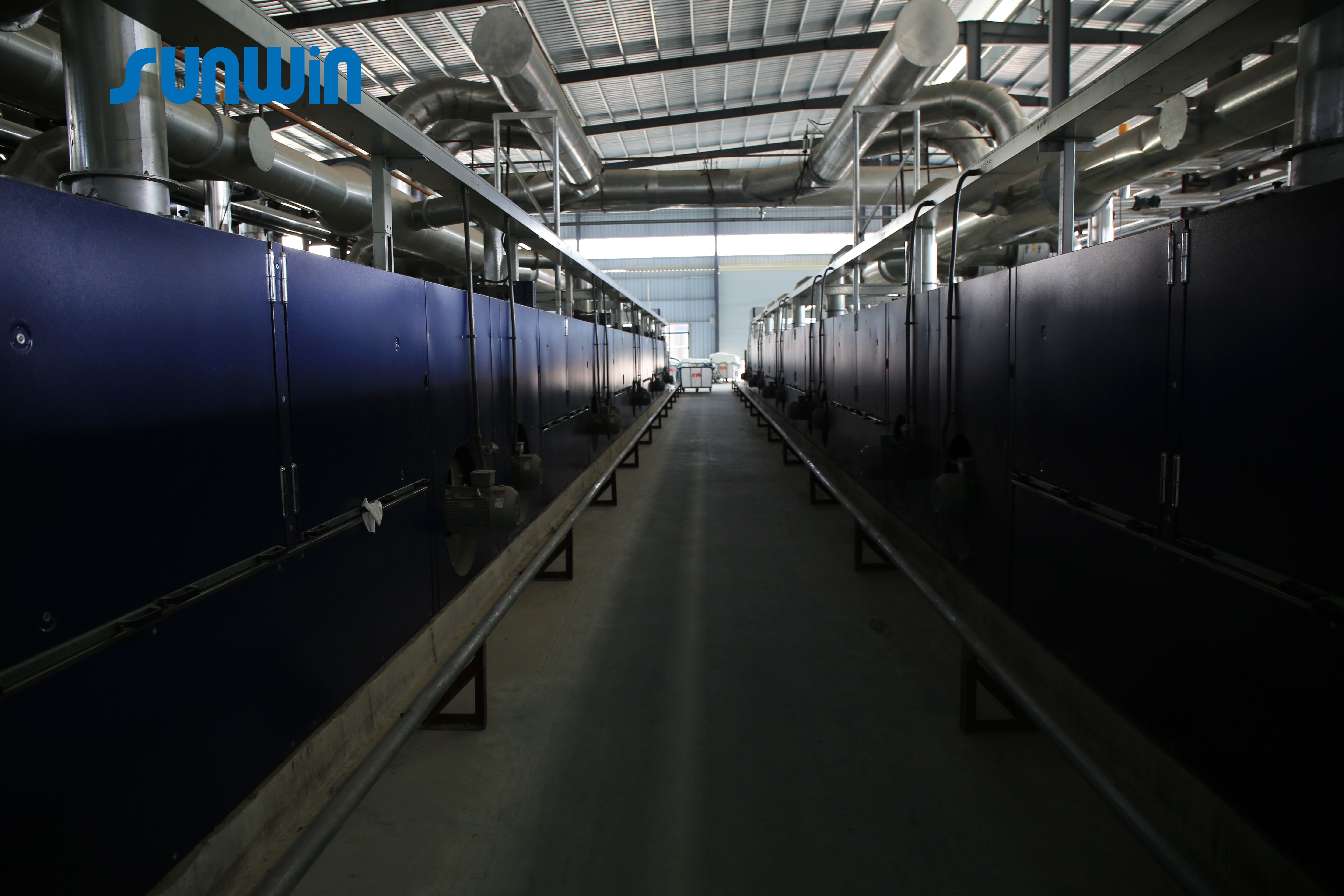

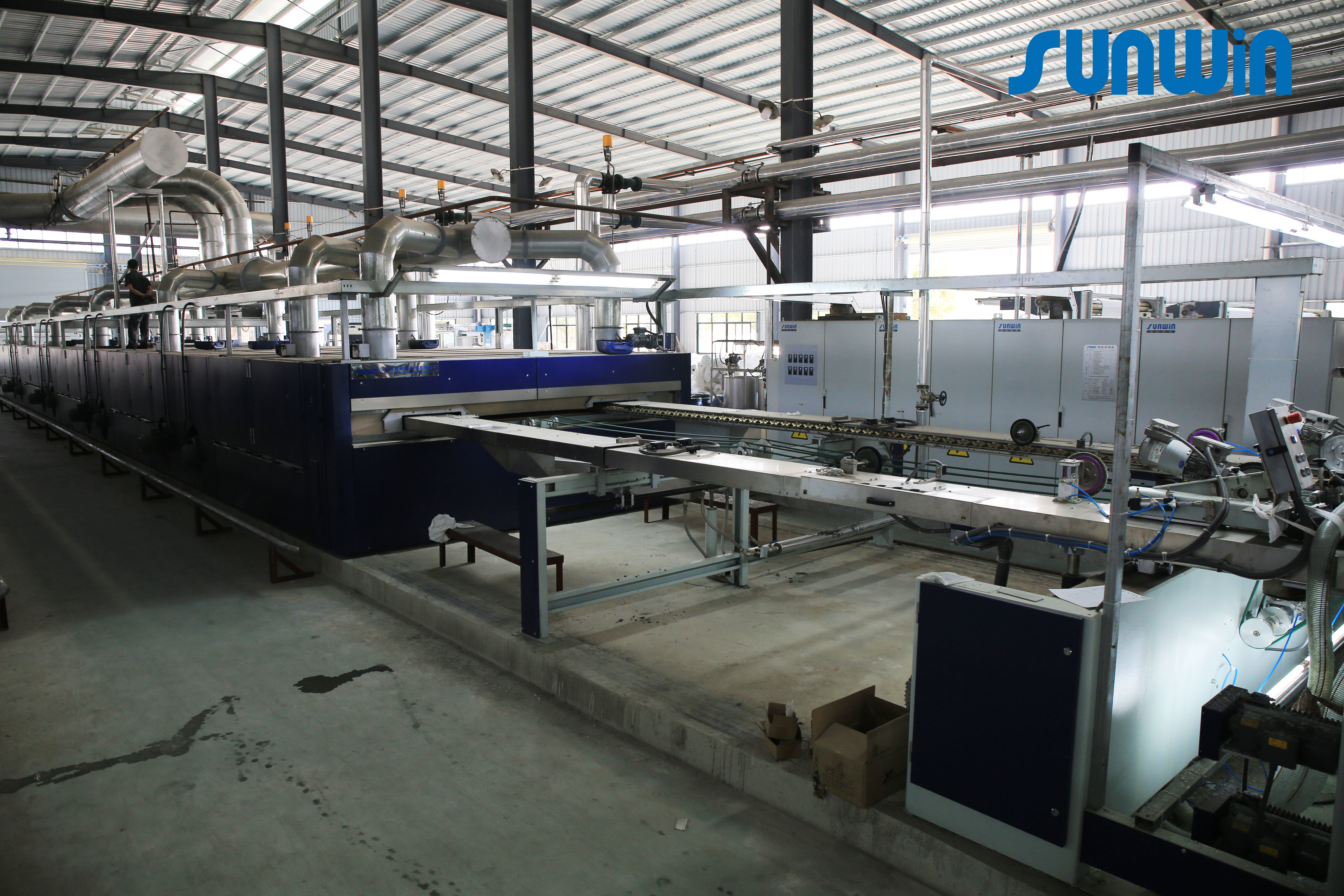

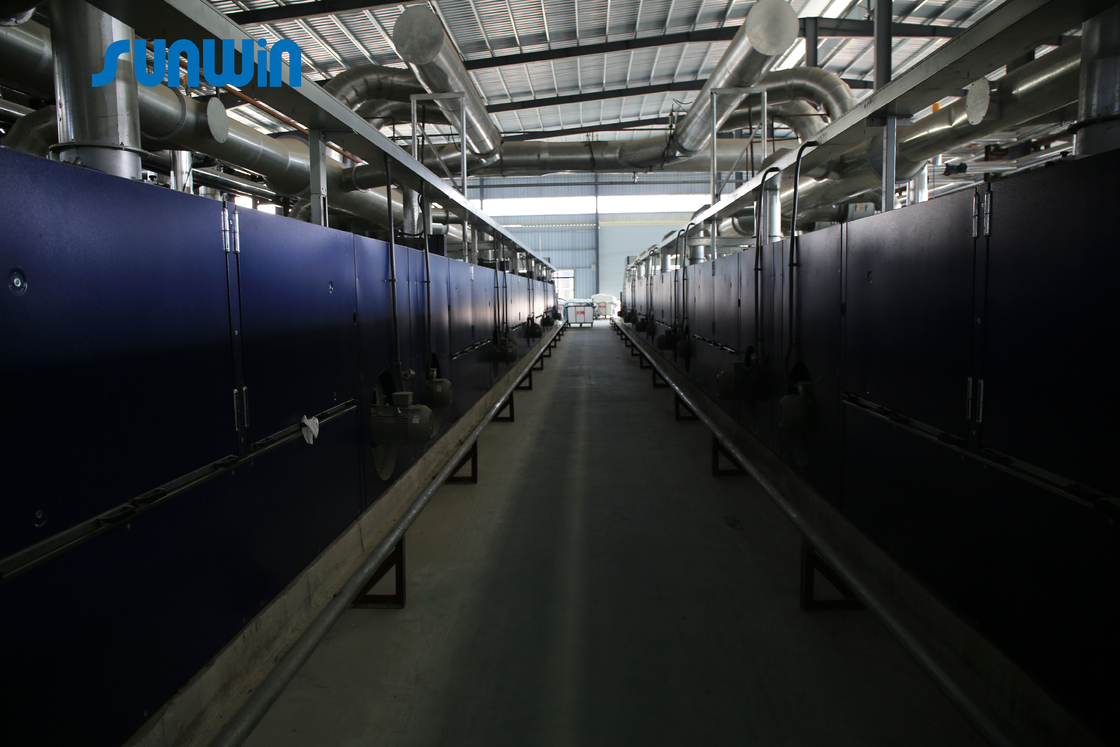

Factory View:
