| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUNWIN |
| Certification: | CE |
| Model Number: | DDH-2200-10 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD5000-300000 |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 7-8 Sets/ Month |
| Condition: | New | Product Name: | Twin Air Blowing System Hot Air Drying Textile Finishing Machine For Upholstery Fabric |
|---|---|---|---|
| Voltage: | 380V/50HZ | Installed Power: | 185 KW |
| Warranty: | 1 Year | Service: | Overseas Service Available |
| High Light: | Natural Gas heating Textile Finishing Machine,10 chambers textile Finishing Machine,stenter machine textile For Upholstery Fabric |
||

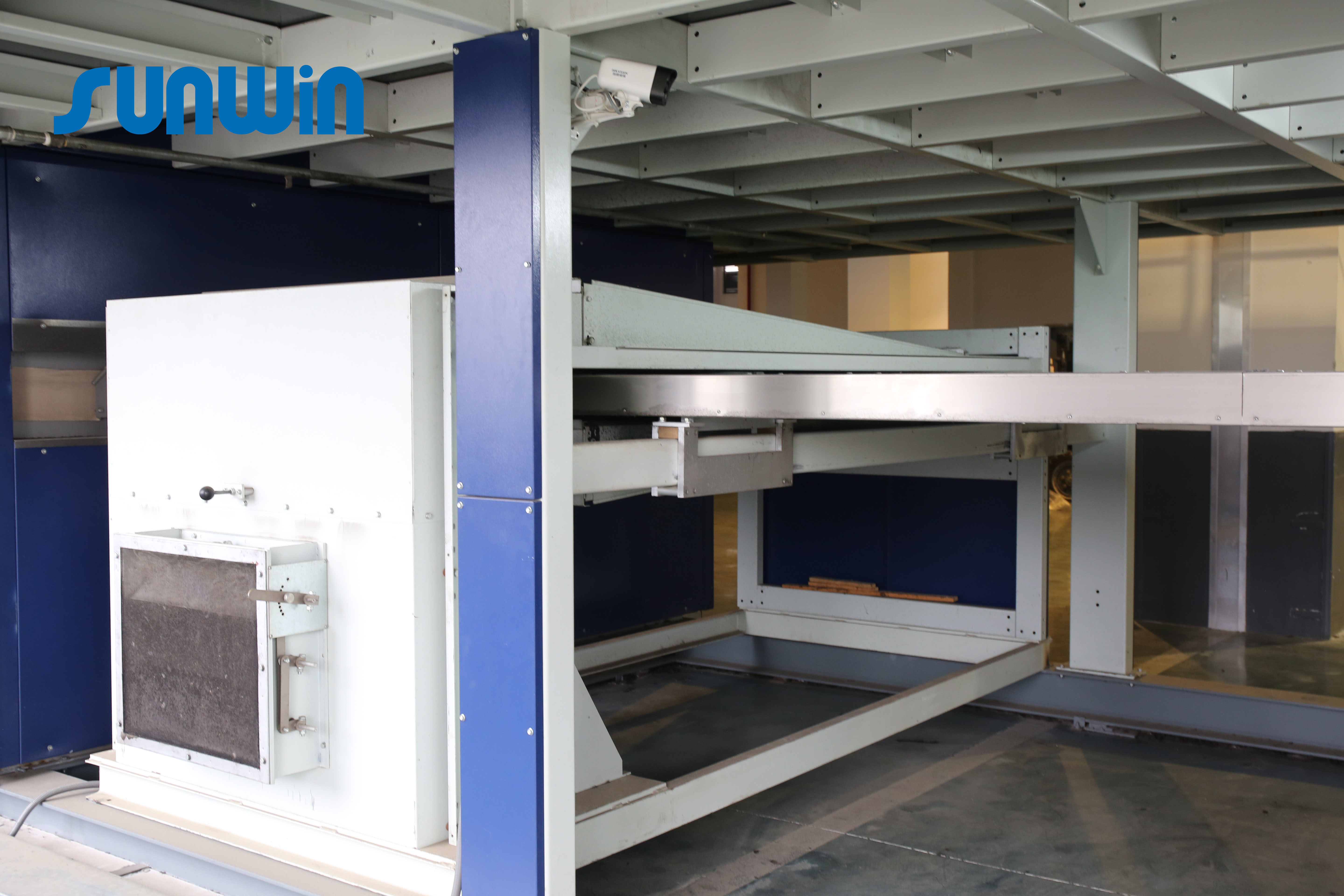

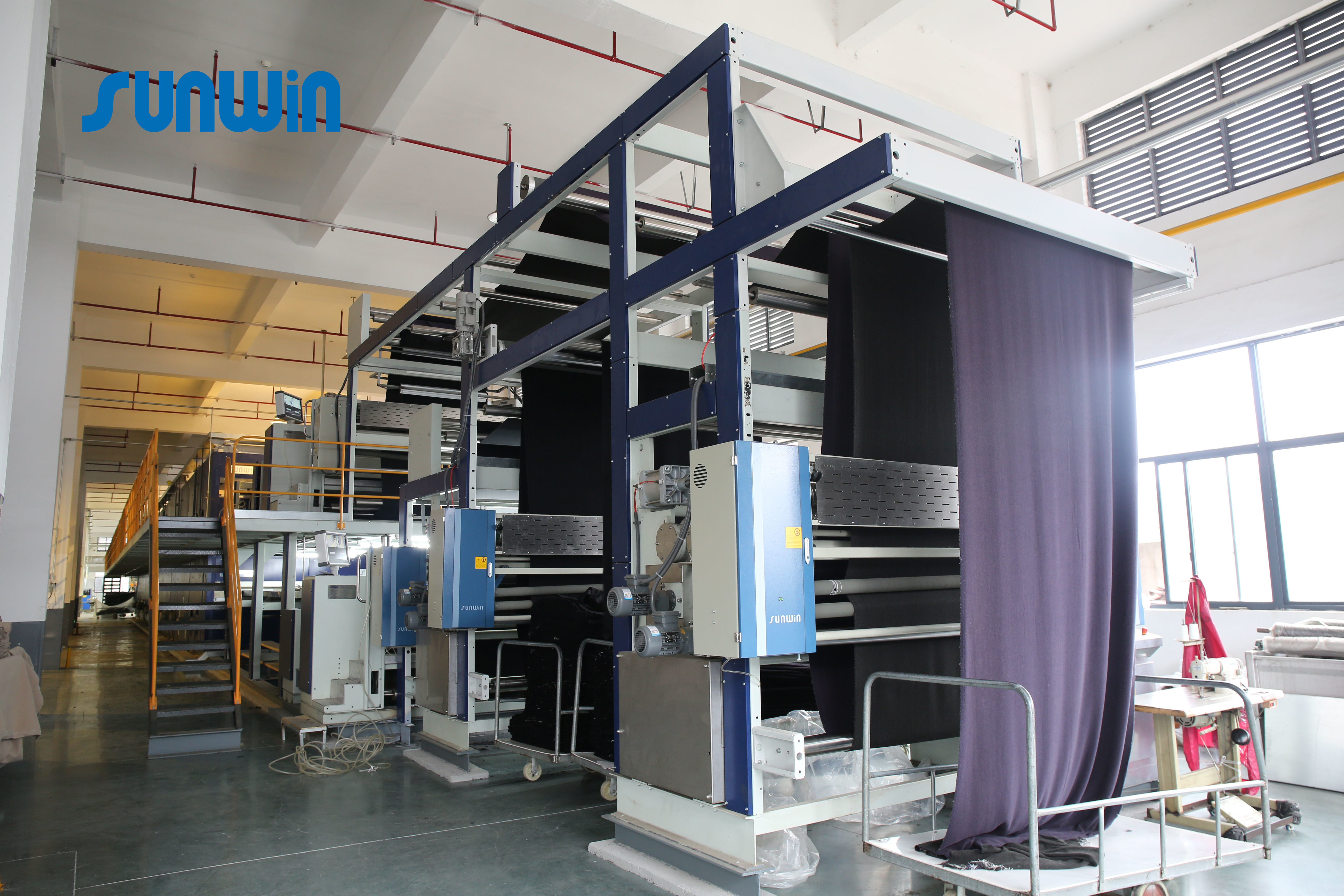

Twin air blowing system hot air drying textile finishing machine for upholstery fabric
Application:
Major suitable for home textile, upholstery, fleece, blanket and other kinds of fabric
Main flow process:
Fabric entry → Padder → Operation Platform + 15‘’ Touch Screen Controller → Pinning + Overfeeding system → Chamber → Air cooling → Cooling cylinder → Fabric exit
Specification:
| Model | DDH-2000-10 |
| Machine width | 2000mm |
| Working width | 1800mm |
| Chamber | 10 chambers |
| Speed | 5-100m/min |
| Heating system | Natural Gas |
| Entry | Vertical type entry |
| Padder | 2 roller padder, driving roller hardness 95 Shao A, driven roller hardness 85 Shao A |
| Overfeed rate | -30% ~ +80% |
| Chamber length | 3000mm |
| Selvedge uncurler | 4 finger uncurler |
| Chain | Pin type chain |
| Cooling | Air cooling + Cooling cylinder |
| Fabric exit | Batching + Plaiter |
FAQ:
Q1: How can i visit your factory and see the running machines ?
A1: Our company located in Wuxi, Jiangsu Province, which very close to Shanghai Airport, we can pick up you at Shanghai airport or Wuxi Railway Station.
Q2: How about your company history ?
A2: Our company was established in 2000, we have over 20 years experience in this field.
Q3: How long can i got the machine after we place the order ?
A3: Normally it takes 3 months for our machine delivery.
