| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUNWIN |
| Certification: | CE |
| Model Number: | KTH-2400-8 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD5000-300000 |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 7-8 Sets/ Month |
| Model: | KTH-2400-8 | Machine Width: | 2400mm |
|---|---|---|---|
| Working Width: | 2200mm | Chamber: | 8 Chamber |
| Speed: | 5-100m/min | Voltage: | 380V/50HZ |
| Power: | 185 KW | Warranty: | 1 Year |
| Service: | Overseas Service Available | ||
| High Light: | 2200mm stenter frame machine,5m/min stenter frame machine,100m/min denim finishing machine |
||

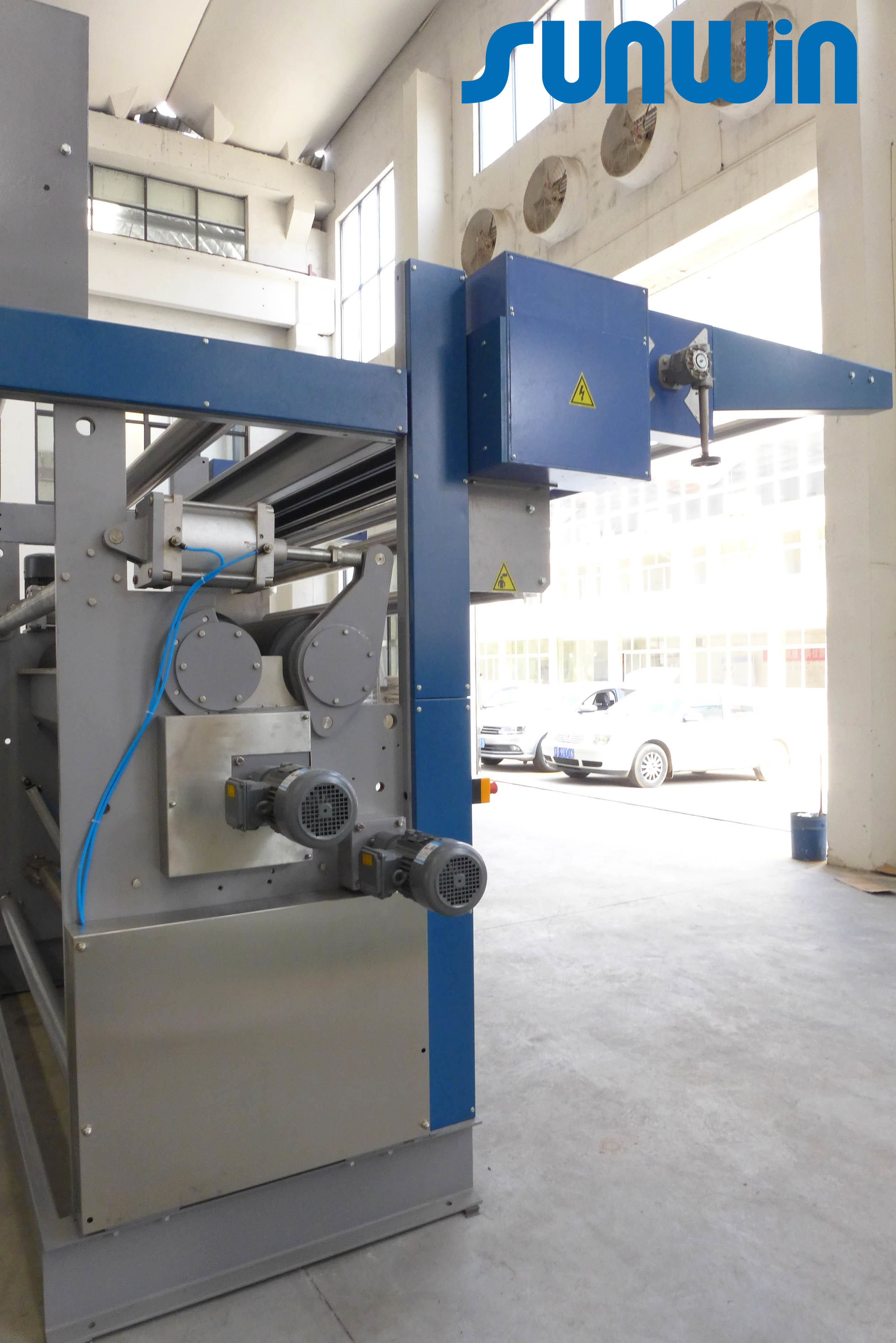

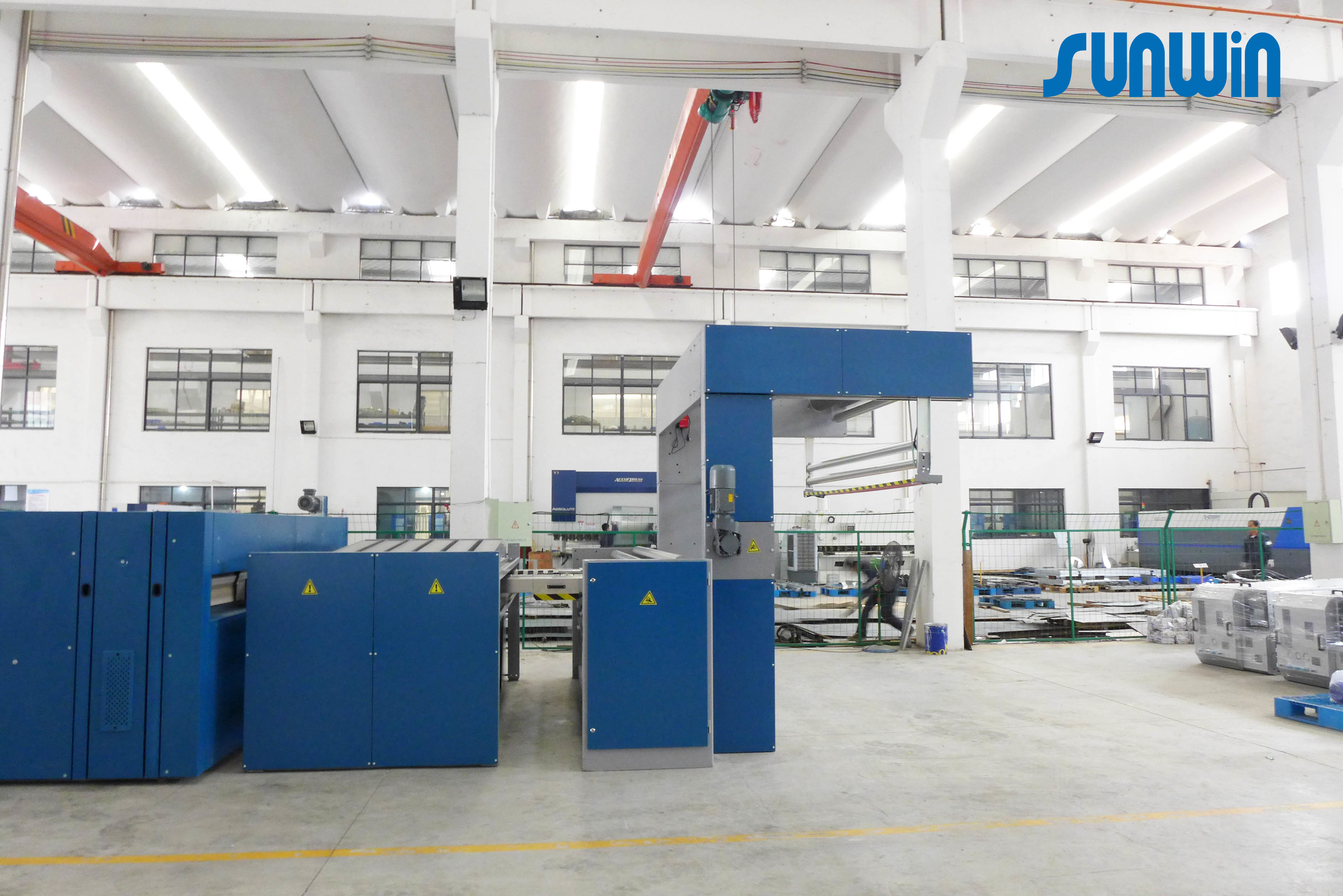

thermal oil heated control bridge touch screen controlling stenter finishing machine
Features:
- Space saving construction
- Intergrated exhaust air duct
- The chain is easy to clean
- Module construction, easily for maintenance and cleaning
- Latest automation system for the whole complete machine
- Each parameters can be controlled by touch screen controller
- Air nozzle is easy to taken out for cleaning
- Max. working temperature 230 degree
- single padder or double padder, each padder include 1 set of driving roller and 1 set of driven roller
Specification:
| Model | KTH-2400-8 |
| Machine width | 2400mm |
| Working width | 2200mm |
| Chamber | 8 chamber |
| Speed | 5-100m/min |
| Heating system | Natural gas, steam or thermal oil |
| Chain | Horizontal pin type chain |
| Padder | Inclined type padder |
| Rail | Lubricant type rail |
| Plaiter | Plaiter |
| Touch screen controller | 15'' |
| Automation | PLC+ Inverter |
Company Information:
Wuxi Xinwen Machinery Manufacturing ( Wuxi) Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
