Condition: | NEW | Automatic Grade: | Fully Automatic |
---|---|---|---|
Voltage: | 380V/50HZ | Power: | 185KW |
Weight: | 50 T | Service: | After Sales Service Provide |
High Light: | 2400mm fabric Finishing Machine,230 deg fabric Finishing Machine,fabric sueding machine 100m/min |

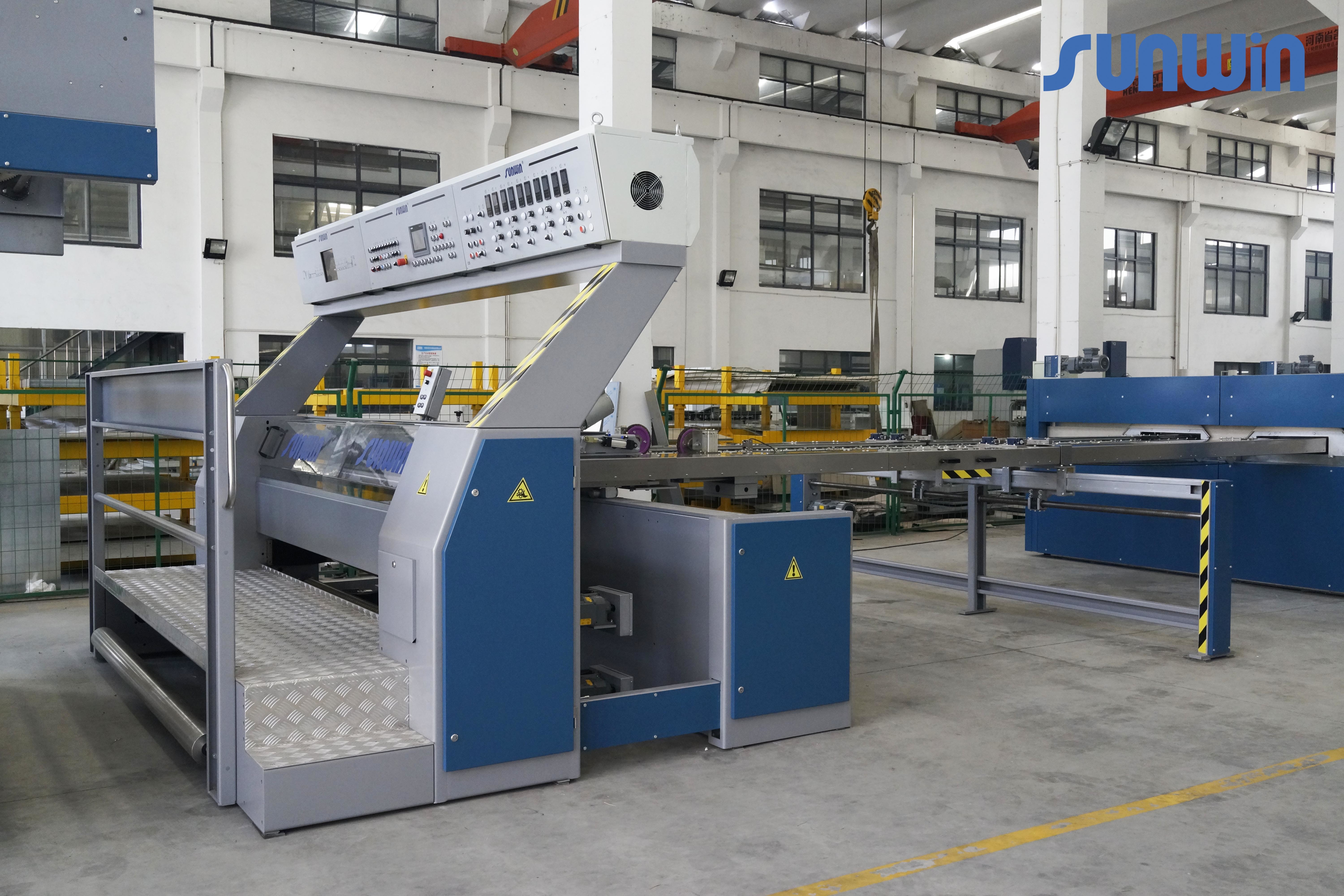

after bleaching washing machine textile stenter finishing machine
Application:
Suitable for fabric after bleaching, washing process fabric drying and heat setting finishing treatment
Specification:
Model | KTH-2600-8 |
Machine width | 2600mm |
Working width | 2400mm |
Chamber | 8 chamber |
Speed | 5-100m/min |
Temperature | 230 ℃ |

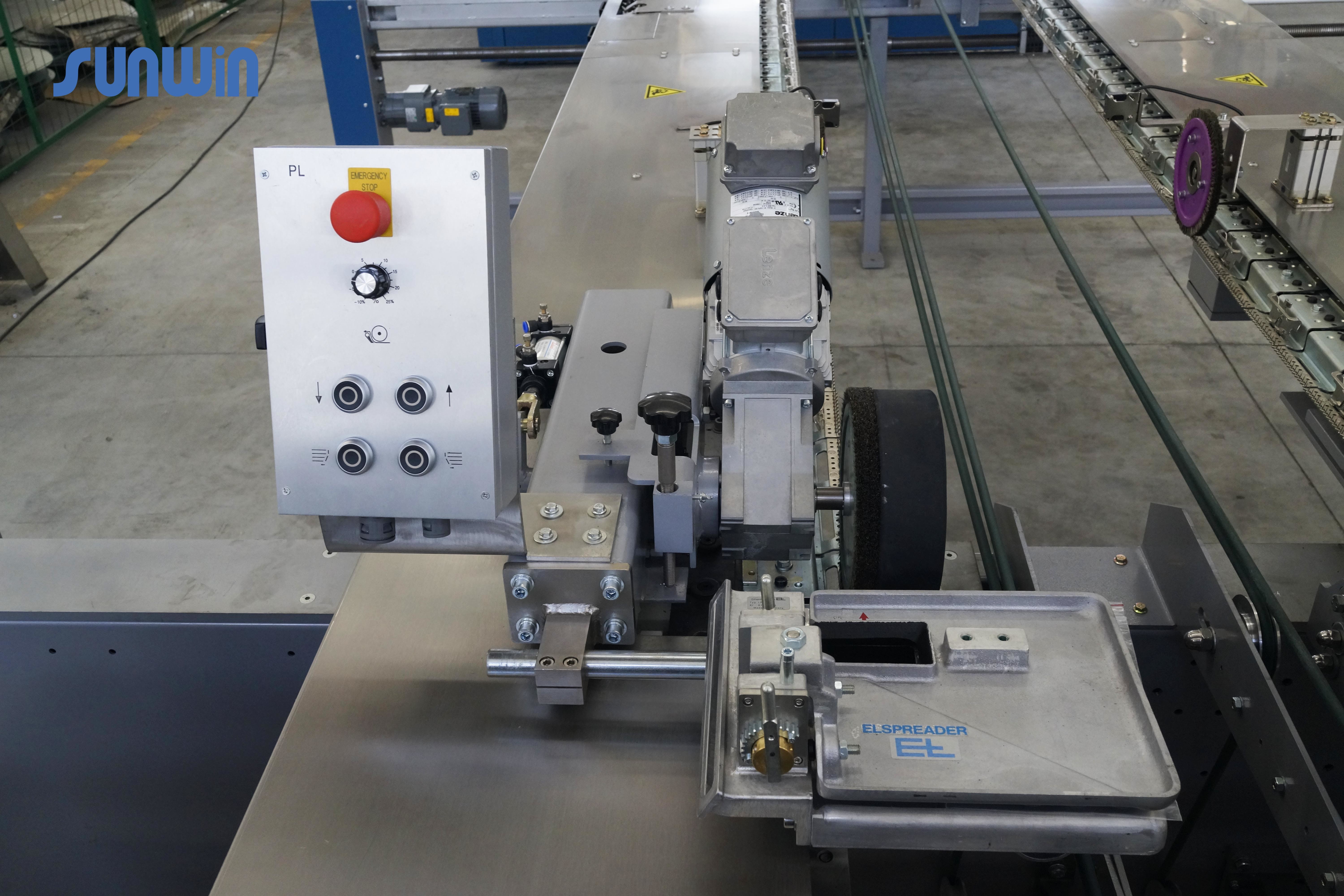

Centering device | Horizontal type centering device |
Padder | Driving roller 95Shao A degree; driven roller 85 Shao A degree |
Chain | Horizontal type lubricant free chain |
Overfeed rate | -30% ~ +80% |
Touch Screen Controller | 15'' |
Chamber length | 3000mm |
Chamber insulation panel | 150mm |
Cooling | Air cooling+ Cylinder cooling |
Exit | Fabric plaiter + batching device |
Company Introduction:
Wuxi Xinwen Machinery Manufacturing Co., Ltd. is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
