Model: | KTH-2400-8 | Machine Width: | 2400mm |
---|---|---|---|
Working Width: | 2200mm | Chamber: | 8 Chamber |
Speed: | 5-100m/min | Voltage: | 380V/50HZ |
Power: | 185 KW | Warranty: | 1 Year |
Service: | Overseas Service Available | Weight: | 50T |
Condition: | NEW | Automation: | PLC+ Inverter |
Highlight: | 2200mm Textile Finishing Machine,Textile Finishing Machine 185KW,cloth finishing machines 100m/min |

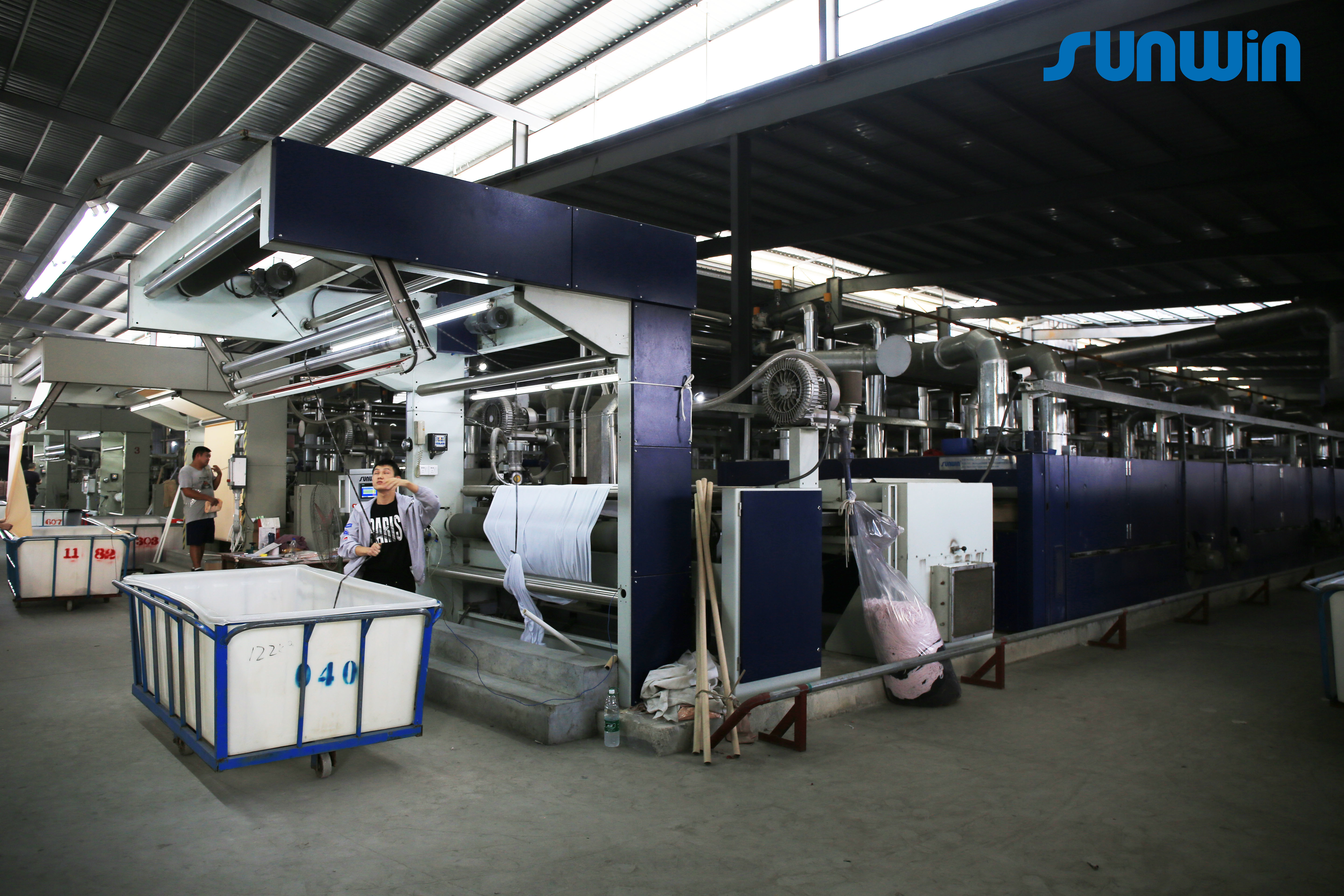

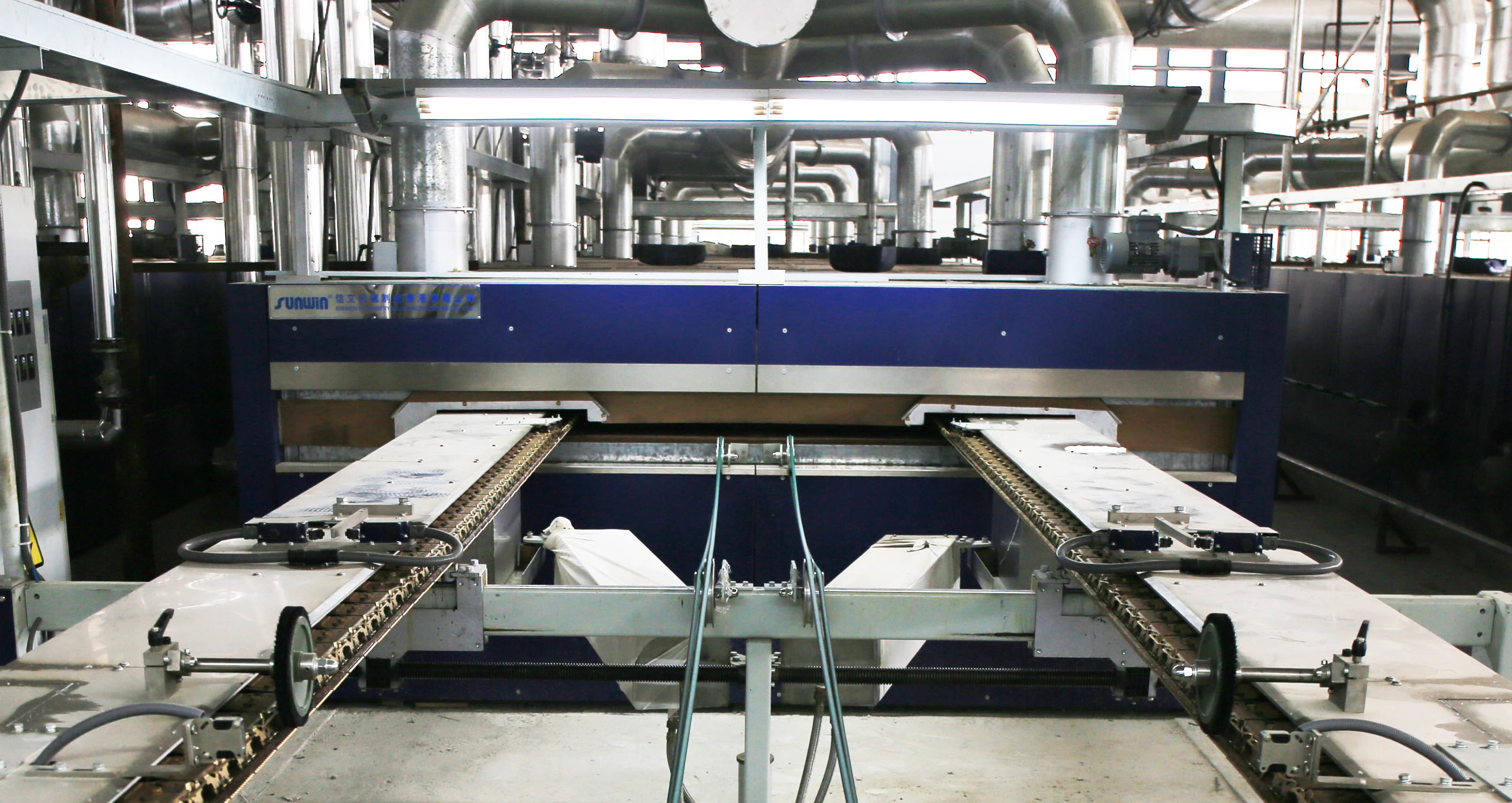

Hot air drying width fixation textile stenter finishing machine
Features:
- Air locks at entry and exit openings
- Special panelling for low heat radiation
- Gas, thermal oil or steam heating
- Up and down air flow can be adjustable by touch screen controller
- Perfect insulation result with thickness 150mm
- Easy clean chamber design
- The lint filter can be removed for cleaning during machine running process
Specification:
Model | KTH-2400-8 |
Machine width | 2400mm |
Working width | 2200mm |
Chamber | 8 chamber |
Speed | 5-100m/min |
Heating system | Natural gas, steam or thermal oil |
Chain | Horizontal chain |
Padder | Single padder or double padder, each padder consist 2 padding rollers |
Rail | Lubricant type rail |
Selvedge gumming, cutting unit | Option |
Chamber moisture controller | Option |
Automatic weft straightener | Option |
Plaiter | Plaiter or roller batching |
Company Information:
Wuxi Xinwen Machinery Manufacturing ( Wuxi) Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
