Model: | STH-3200-8 | Machine Width: | 3200mm |
---|---|---|---|
Working Width: | 3000mm | Chamber: | 8 Chamber |
Speed: | 5-100m/min | Voltage: | 380V/50HZ |
Power: | 185 KW | Warranty: | 1 Year |
Service: | Overseas Service Available | Color: | Blue+ White |
Highlight: | SUNWIN Textile Finishing Machine,Textile Finishing Machine 8 chamber,Fabric Raising machine 100m/min |

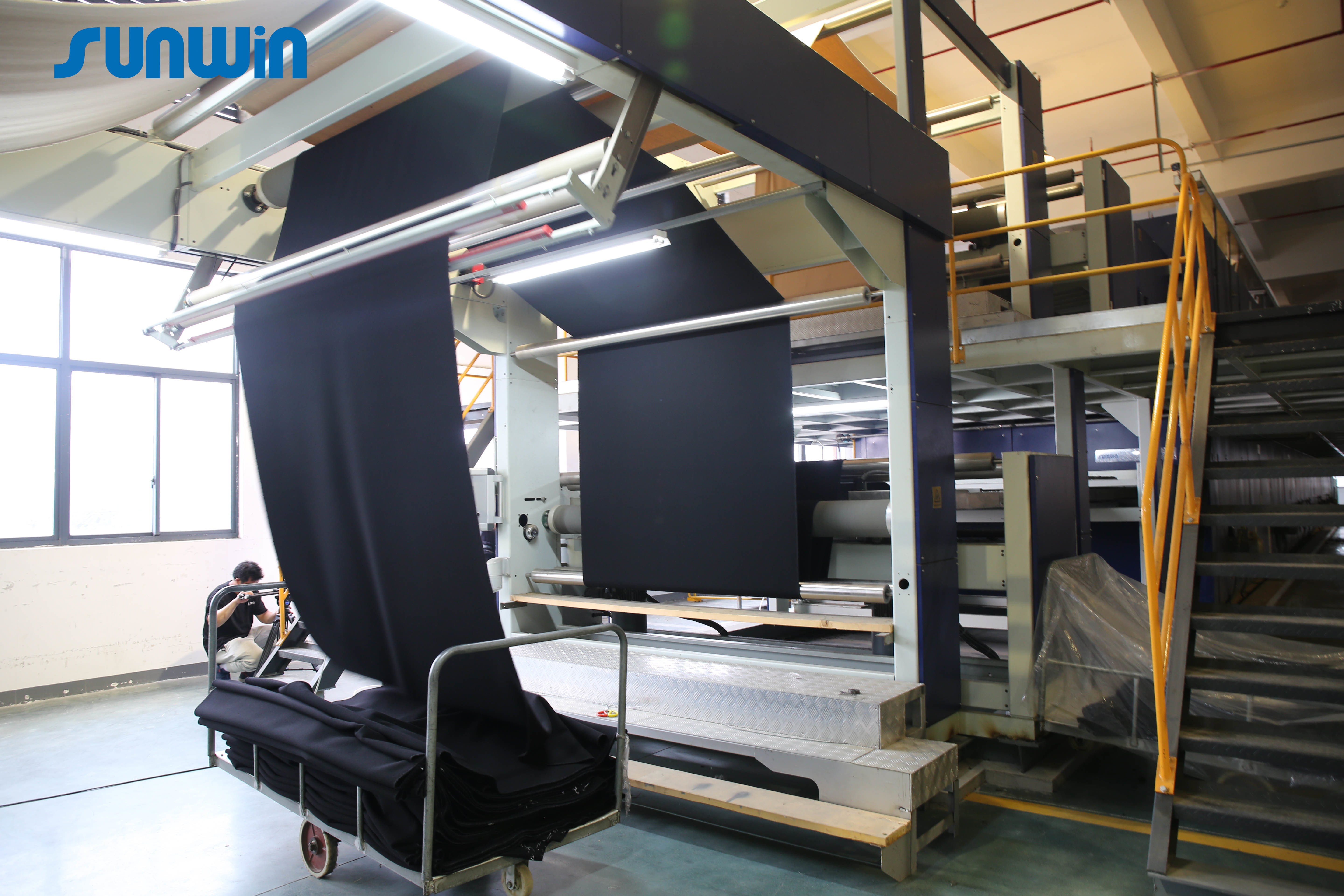

After fabric raising textile tenter finishing machine for fleece
Features:
- Air locks at entry and exit openings
- Special panelling for low heat radiation
- Higher evaporation rate
- Reduce energy input
- Programmable control functions
- The lint filter can be removed for cleaning during machine running process
Specification:
Model | STH-3200-8 |
Machine width | 3200mm |
Working width | 3000mm |
Chamber | 8 chamber |
Speed | 5-100m/min |
Chain | Horizontal chain |
Padder | Single padder or double padder, each padder consist 2 padding rollers |
Rail | Lubricant type rail |

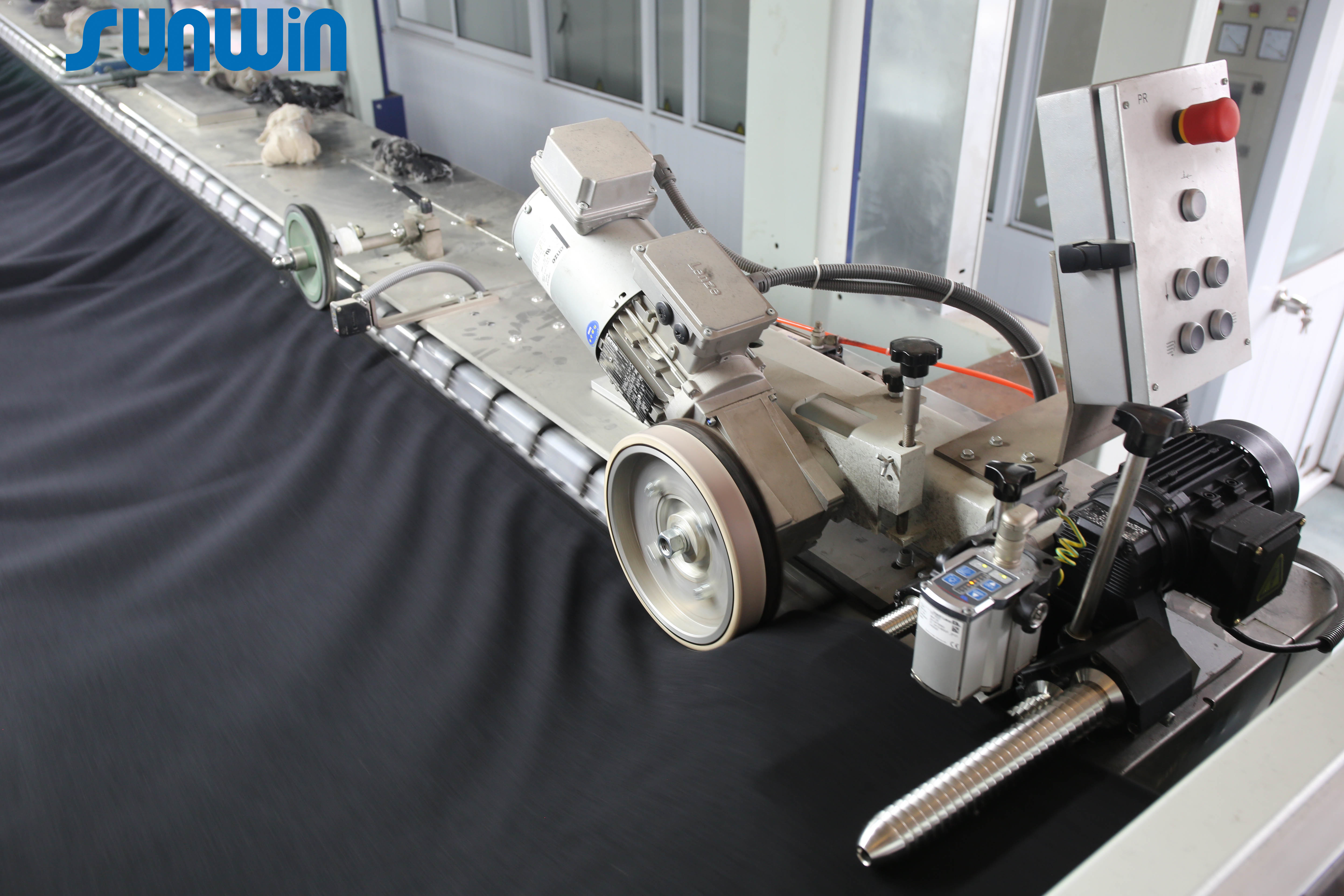

Selvedge gumming, cutting unit | Option |
Chamber moisture controller | Option |
Automatic weft straightener | Option |
Plaiter | Plaiter or roller batching |
Company Information:
Wuxi Xinwen Machinery Manufacturing ( Wuxi) Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer.
