Condition: | New | Automatic Grade: | Fully Automatic |
---|---|---|---|
Product Name: | Economic Type Twin Air Blowing System Tenter Frame Stenter Machine For Cotton Fabrics | Machine Model: | STH-2000-10 |
Voltage: | 380V/50HZ | Power: | 185KW |
Warranty: | 1 Year | Service: | Overseas Service Available |
High Light: | 1800mm finishing stenter machine,8 chambers finishing stenter machine,cotton fabrics stenter frame machine |

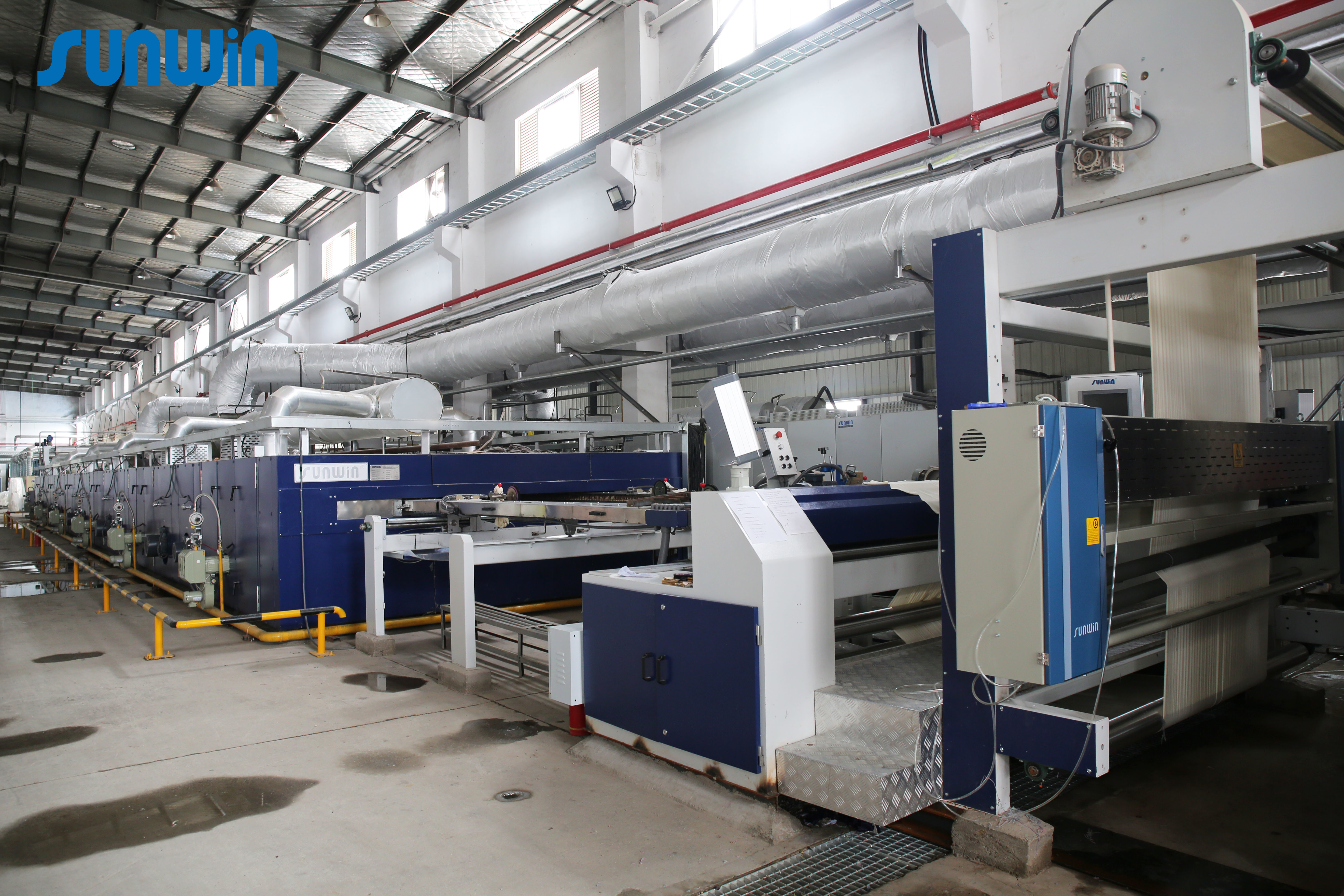

Economic type twin air blowing system tenter frame stenter machine for cotton fabrics
Main features:
- Special designed system, greatly improve energy efficiency
- Upper and down air flow can be adjusted
- Intelligent production management system, which helps customers to graspthe operation of the machine in real time
- Individual air nozzles with more efficiency and energy saving result
Specifications:
Model | STH-2000-10 |
Machine width | 2000mm |
Working width | 1800mm |
Chamber | 10 chambers |
Heating system | Natural gas |
Speed | 5-100m/min |

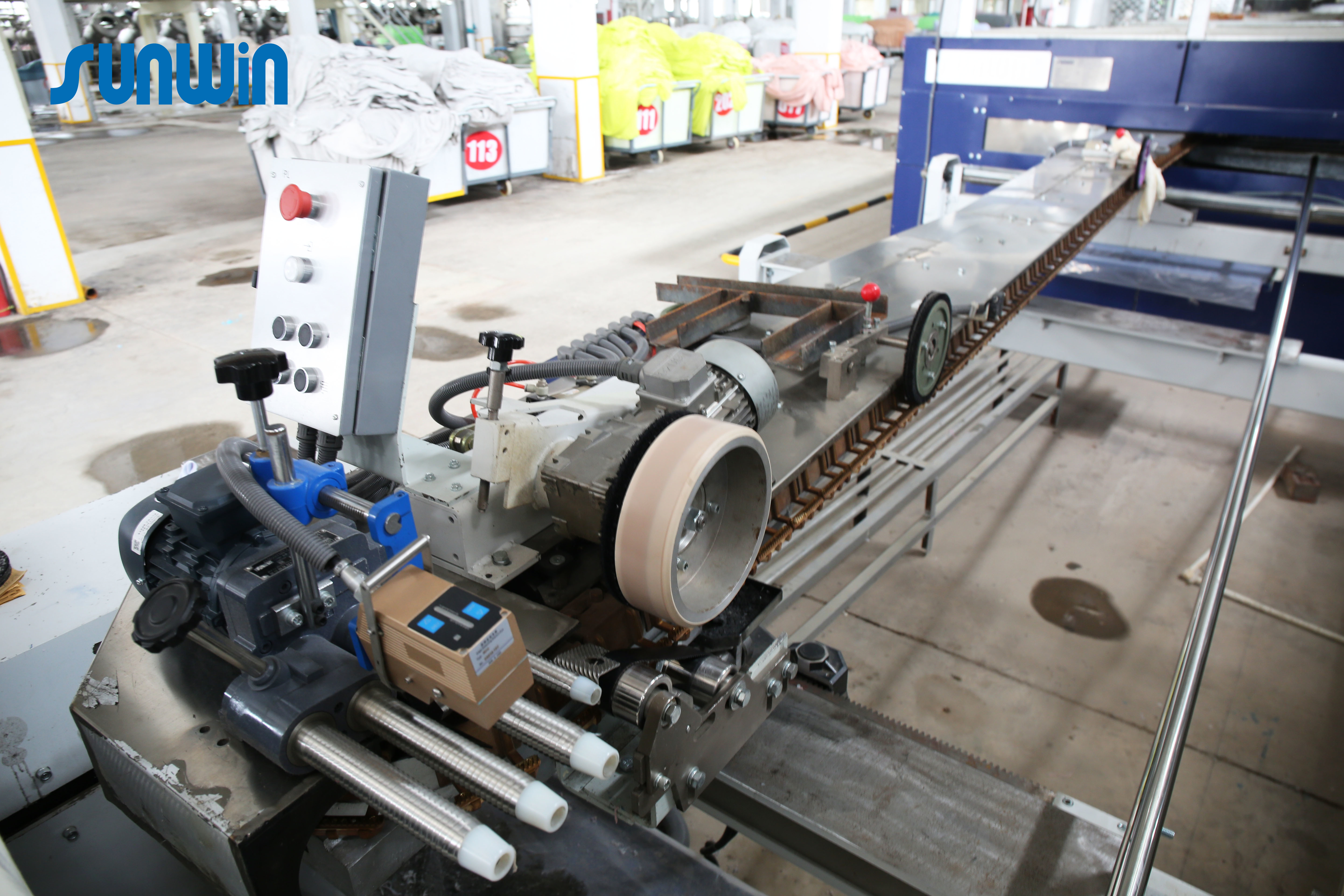

Selvedge uncurler | 4 finger uncurler/ Pneumatic uncurler |
Overfeed rate | -30%~+80% |
Cooling device | Air cooling + cooling cylinder |
Fabric exit | Fabric Plaiter+ Batching |
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for customer
