Condition: | NEW | Product Name: | Tubular Knitting Warp Knitted Tenter Frame Machine |
---|---|---|---|
Automatic Grade: | Fully Automatic | Heating System: | Gas |
Voltage: | 380V/50HZ | Power: | 185KW |
Highlight: | SUNWIN Tenter Frame Machine,1800mm Tenter Frame Machine,finishing stenter machine 50HZ |

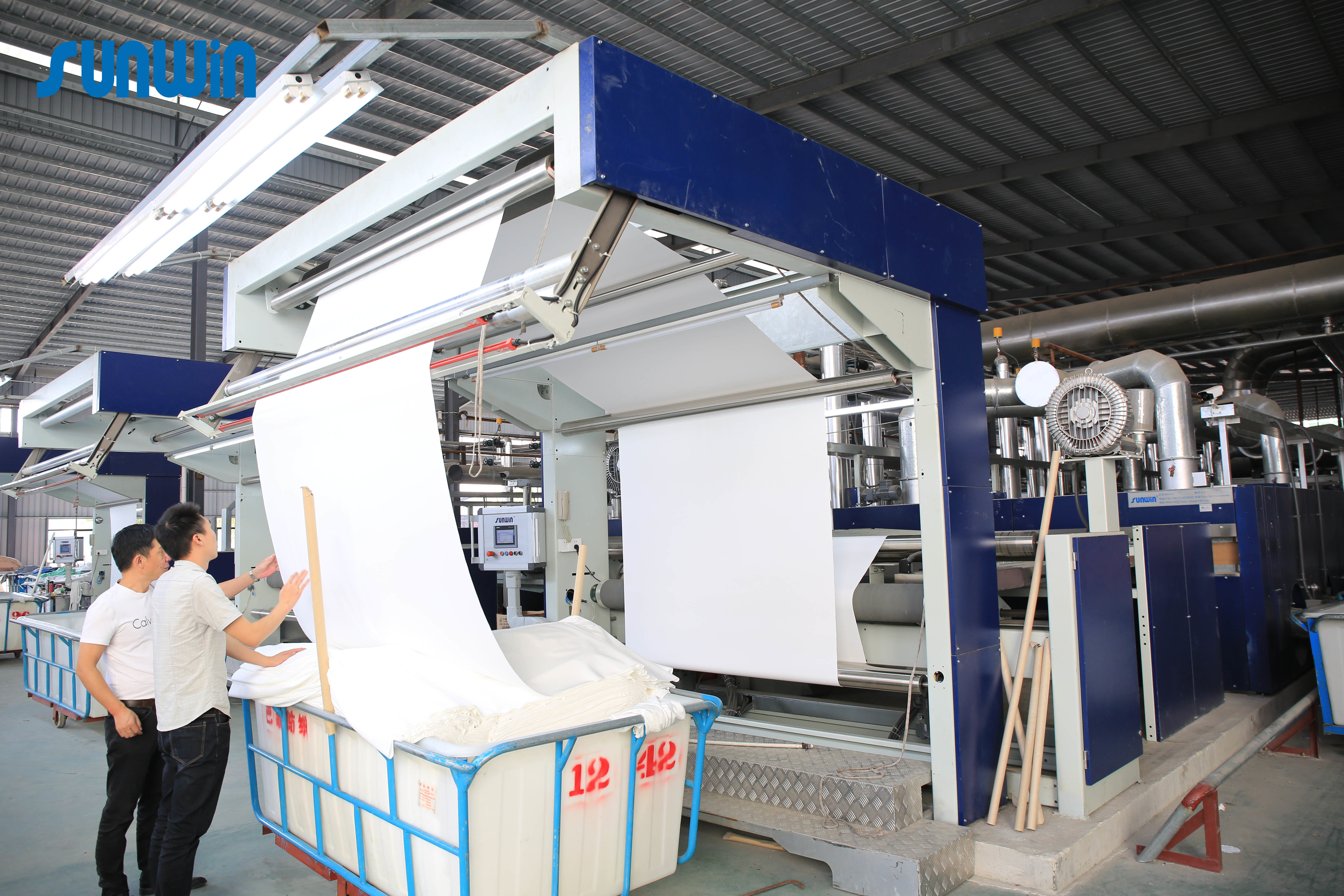

Tubular knitting warp knitted tenter frame machine
Features:
- Left and right chain have individual motor with inverter speed control
- Individual air nozzles with more efficiency and energy saving finishing result
- Air nozzle are easily installing, which suitable for dust remove and maintenance
- Different kinds of nozzles can be used for different kinds of fabric finishing
- Special designed chamber and service door are easily for maintenance
Specification:
Model | KTH-2000-10 |
Machine width | 2000mm |
Working width | 1800mm |
Chamber | 10 chamber |
Speed | 5-100m/min |
Padder | Horizontal padder |
Operation system | 15'' touch screen controller |
Overfeed rate | -30% ~+80% |
Cooling | Air cooling |
Exit | Plaiter system |
Company Information:
Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech Enterprise, specialist in stenter machine design, manufacturing and sales, Since 2000, we start and insist on giving a professional textile machinery soluation for our customer, upgrade the product quality and create values for our customer.
